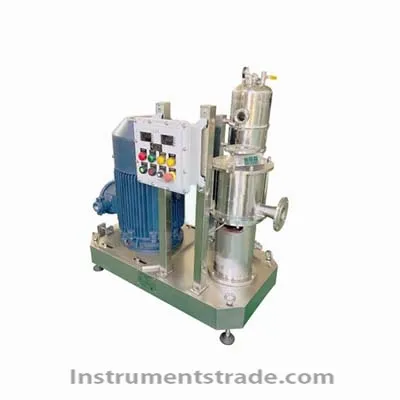

SCX-7 High Shear Dispersion Grinding Machine Introduction: SCX-7 high shear dispersion grinder, high-speed grinding dispersion grinder, with both dispersion and grinding functions, is used to process materials with high dispersion requirements. It has stronger shear force and higher rotational speed than a horizontal structure, with speeds ranging from 4200-9000rpm. It is a high-performance equipment used for continuous production or cyclic processing of fine materials. The working chamber is equipped with a set of high-precision multi tooth fixed rotors. After the materials are high-speed sheared, dispersed, emulsified, and homogenized by the fixed rotors, the ideal processing effect is achieved. Match different knife sets and develop different plans based on different materials characteristic: 1. Dual end face containerized mechanical seal, zero leakage and all-round guarantee 2. High precision fixed rotor, CNC machining by wire cutting, with coarse, medium, and fine distribution 3. Low wear and tear, safe and healthy, especially for food, medicine, and high demand products 4. Rapid homogenization and ability to handle 50000 mPa s viscosity 5. High shear rate, efficiency more than 5 times that of traditional equipment 6. Convenient cleaning, solving the problem of traditional multiple cleaning uncleanness 7. Low energy consumption, saving electricity costs in one year can be achieved by purchasing another machine 8. Fine and accurately controlled particles, micrometer sized, with uniform droplet distribution 9. Imported belt drive system design, simple speed regulation 10. Vertical design, completely emptying materials 11. Mirror polishing, no dead corners in product space 12. Combining mixing and dispersion functions into one 13. Low noise, compact structure Technical parameters: Specification and model: SCX-7 Power (KW): 7.5 Speed (rpm): 8000 Processing capacity (kg/h): 50-500
Introduction: SCX-7 high shear dispersion grinder, high-speed grinding dispersion grinder, with both dispersion and grinding functions, is used to process materials with high dispersion requirements. It has stronger shear force and higher rotational speed than a horizontal structure, with speeds ranging from 4200-9000rpm. It is a high-performance equipment used for continuous production or cyclic processing of fine materials. The working chamber is equipped with a set of high-precision multi tooth fixed rotors. After the materials are high-speed sheared, dispersed, emulsified, and homogenized by the fixed rotors, the ideal processing effect is achieved. Match different knife sets and develop different plans based on different materials
