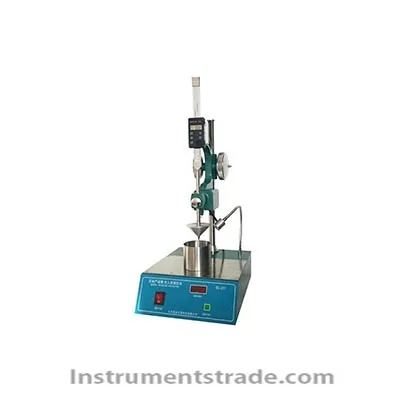

Introduction: This instrument is designed and manufactured according to the national standard GB/T269 "Grease and Petroleum Cone Measurement Method" and with reference to the international standard ISO2137 "Grease and Petroleum Cone Measurement Method", suitable for measuring various greases and petroleum greases. Cone penetration test. It can be equipped with relevant standard accessories for solid fine particles, powders, powders, various pastes and glues. The instrument also meets the testing performance specified in GB1790-2012 "Vaseline" standard, widely used to measure the hardness of grease, petroleum jelly and pharmaceutical ointment products or other semi-solid materials, in design, quality control, and identification The characteristics of the product and other processes play an important role. Widely used in medicine, electronics, food and other fields. Features: 1. The measuring mechanism consists of a digital display, a cone electric lock, a manual button and a timer. 2. Set the micro-adjustment foot screw to adjust the level of the base table by adjusting the foot screw. 3. The upper and lower mediation mechanism is composed of a support rod, a support arm and upper and lower thickness adjustment knobs. 4. The advanced adjustment hand wheel is divided into two speeds, which is convenient for the test. The tip of the hand is aimed at the surface of the specimen. The handwheel is quickly moved to the left of the instrument, and the handwheel is on the right side of the instrument. 5, using the liquid crystal digital clearing of the millimeter millimeter scale depth measuring mechanism, easy to use. 6, the bracket has a self-locking function at any time, and any position can be automatically stabilized and stopped. 7. A mechanism with a manual release cone to ensure self-control during use. Technical Parameters: 1, working power: AC220V ± 10% 50HZ 2, measurement range: 0 ~ 600 cone into the unit 3, release stroke: 62 mm or more 4, digital caliper: 0 ~ 100 mm 5, display accuracy: 0.01 mm 6, the minimum reading: 0.1 cone into the unit 7, timing range: 5 seconds or 60 seconds 8, measuring cones, in line with GB/T269 standard 1 Full-size cone mass 102.5±0.05g Cone rod mass 47.5±0.05g (optional) The total mass of the 2 1/2 proportional cone and cone is: 37.5 ± 0.05g, the mass of the cone is 22.5 ± 0.025g, and the mass of the cone is 15 ± 0.025g (optional) 3 1/4 scale vertebral body and cone total mass 9.38±0.025g (optional) 9, grease machine, in line with GB/T269 standard 1 full-size work machine stroke 71mm (optional) 2 1/2 proportional working machine stroke 35 mm (optional) 3 1/4 proportional working machine stroke 14 mm (optional) 10, dimensions: 530 × 290 × 360 (mm)
Introduction: This instrument is designed and manufactured according to the national standard GB/T269 "Grease and Petroleum Cone Measurement Method" and with reference to the international standard ISO2137 "Grease and Petroleum Cone Measurement Method", suitable for measuring various greases and petroleum greases. Cone penetration test. It can be equipped with relevant standard accessories for solid fine particles, powders, powders, various pastes and glues. The instrument also meets the testing performance specified in GB1790-2012 "Vaseline" standard, widely used to measure the hardness of grease, petroleum jelly and pharmaceutical ointment products or other semi-solid materials, in design, quality control, and identification The characteristics of the product and other processes play an important role. Widely used in medicine, electronics, food and other fields.
