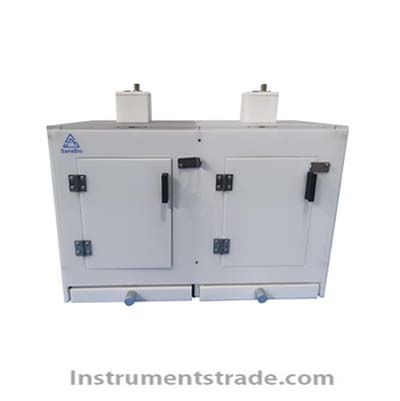

SA207 dark avoidance experiment video analysis system for Animal experiment

Product ID:SHDWxwyj016

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSA207
    Brand NameJSSASSWKJ
    Payment TermsT/T, paypal
    Product description:
    A device designed to take advantage of the murine or rat habit of shading away from light, half a dark chamber, half a bright chamber, with a small hole in the middle.
    At the bottom of the dark room was a copper grating with electricity.
    Animals are shocked when they enter a dark room.
    This experiment is simple and easy to operate. The more reaction boxes, the more animals are trained at the same time.
    With the incubation period as the index, the difference between animals is small.
    Have high sensitivity to memory process, especially memory reproduction.
    Technical parameters:
    1. External dimensions of the mobile box: 700 * 260 * 430mm, aluminum alloy is adopted for the frame
    2. The inner dimensions of white box and black box are respectively 250 * 185 * 300mm
    3. Input voltage: AC220V
    4. Grid current limiting adjustment range: 0.04~ 3.5ma
    5. Adjust the step length: 0.02mA, and the current error is less than 0.04mA
    6. Voltage adjustment range of the grid: 30~120V (square wave peak value), adjust step length of 1V
    7. Square wave stimulation frequency on each grid: 96Hz, 1% error
    8. Camera brand: SONY gun camera
    9. Color: black and white or color
    10. Minimum illumination: <0.005Lux
    11. Video acquisition card: USB2.0 external
    12. Camera needle frequency rate: 28/30 zhen650x,
    13. Camera resolution: 640 * 480
    14. Camera power: 12V 5A
    15. Camera type: 2.8~4mm
    16. Encrypted dog type: USB2.0 interface
    17. Signal transmission mode: signal power integrated line is 5 meters
    18. Video acquisition module :USB acquisition card
    19. Data indicators: incubation period, error times, open-box activity time, black-box activity time, shuttle times, open-box activity distance and black-box activity distance

  • Product description:
    A device designed to take advantage of the murine or rat habit of shading away from light, half a dark chamber, half a bright chamber, with a small hole in the middle.
    At the bottom of the dark room was a copper grating with electricity.
    Animals are shocked when they enter a dark room.
    This experiment is simple and easy to operate. The more reaction boxes, the more animals are trained at the same time.
    With the incubation period as the index, the difference between animals is small.
    Have high sensitivity to memory process, especially memory reproduction.
