Introduction:

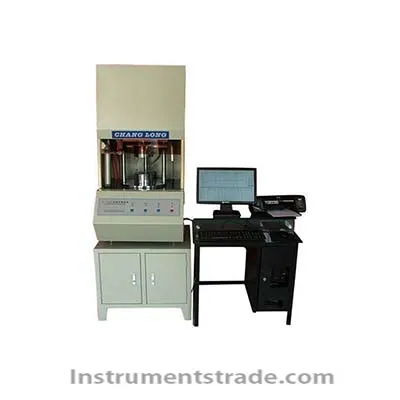

RX-8000 computer Mooney viscosity meter, temperature control circuit by the measurement and control module, platinum resistance, heaters, can automatically track changes in power grid and ambient temperature, PID parameters automatically be amended to achieve rapid, accurate temperature control purposes. Data acquisition system and mechanical and electrical chain to complete the rubber test process automatically detects the torque signal, automatic real-time display of temperature and set value. After curing, automatic processing, automatic calculation, printing Mooney, scorch curve and process parameters. Computer real-time display test process, from the above can be seen at a glance "temperature" and "time - Mooney" process of change. Recycled plastic, rubber, wire and cable industry indispensable instrument. Features:
1, high temperature control accuracy, wide range. (± 0.1 ℃)
2, the clock programming function. (Set, modify time)
3, advanced switching power supply, a wide range of voltage regulator.
4, import integrated circuits and control components.
5, the overall processing of one cavity, precision than some manufacturers assembled cavity several times.
6, the spindle square hole by high-precision wire walking from processing, precision control of domestic counterparts are unmatched. Specifications:
Implementation of standards: ISO28-63, GB / T3242-2005
Measurement and control temperature range: room temperature ~ 200 ℃
Temperature measurement accuracy: ≤ ± 0.3 ℃
Control accuracy: ≤ ± 0.3 ℃
Temperature resolution: 0.1 ℃
Torque range: 0-100 Mooney value
Calibration accuracy: 100 ± 0.5 Mooney value
Rotor speed: 2 ± 0.02 rev / min
Measurement time: 0-200 minutes resolution of 1 second
Ambient temperature: 0-35 ℃
Relative humidity: <80%
Test pressure: 11.5KN ± 0.5KN
Pressure: 0.45-0.6MPa
Introduction:
RX-8000 computer Mooney viscosity meter, temperature control circuit by the measurement and control module, platinum resistance, heaters, can automatically track changes in power grid and ambient temperature, PID parameters automatically be amended to achieve rapid, accurate temperature control purposes. Data acquisition system and mechanical and electrical chain to complete the rubber test process automatically detects the torque signal, automatic real-time display of temperature and set value. After curing, automatic processing, automatic calculation, printing Mooney, scorch curve and process parameters. Computer real-time display test process, from the above can be seen at a glance "temperature" and "time - Mooney" process of change. Recycled plastic, rubber, wire and cable industry indispensable instrument.
