Introduction:

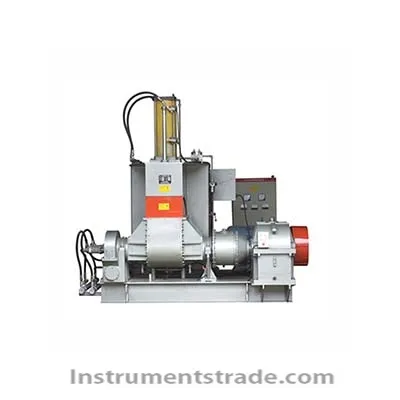

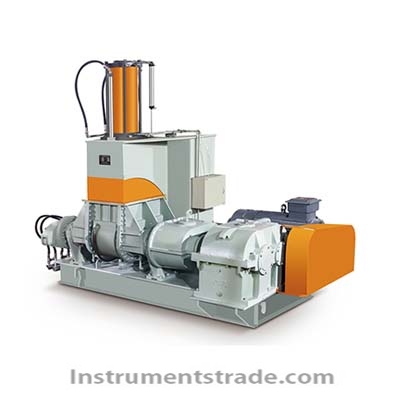

This machine is suitable for rubber, plastic and chemical industry mixing raw materials for processing.
Applicable Products: EVA foam sole, rubber sole, TPR, sole, rubber roller, rubber sponge, tire, sports ball, rubber band, rubber tube, rubber band, rubber compression, stopper, oil seal, Tape, Elastic band, Masterbatch, Ink, Electrical rubber parts, All kinds of steam locomotive rubber products and all kinds of chemical industry mixed materials. Features:
1, rubber (plastic) and other additives in confined, pressurized and temperature controllable conditions, mixing or mastication, high production efficiency, uniform material dispersion, good quality, the environment from pollution, refueling, more color Easy to clean
2, Mixing room, rotor, pressing and other components are used jacketed structure for access to the media, steam, thermal oil, water heating or cooling to adapt to a variety of rubber refining (refining) process requirements, processing The material quality is excellent and stable.
3, the rotor angle of the convex edge and the working length of the design is reasonable, the material can get the best effect of kneading. Its rotor ridge and the end surface of the surfacing wear-resistant cemented carbide, mixing chamber, rotor, pressed 砣 direct contact with the material surface are polished hard chrome plated, bright wear-resistant and corrosion-resistant.
4, from the rack back door (or from the side) feeding, mixing room flip 140 ° forward unloading, so that both the production process up and down the connection process, but also easy to mixing chamber, rotor observation and cleaning.
5, the mixing chamber catchy and rack hanging wall junction, the use of curved plate groove labyrinth pressure seal structure, sealing dust effect. The rotor end adopts the contact external pressure type non-lubricating seal structure, durable and durable.
6, turning mechanism using toroidal envelope worm (TOP) transmission efficiency, carrying capacity, and can achieve unloading stop, eliminating the frequent motor start, greatly extending its service life.
7, the electric control system adopts PLC device, with perfect and reliable automatic control monitoring, alarm and other functions and the necessary chain protection.
8, the machine is durable, low failure rate, easy installation and operation, saving electricity. Technical Parameters:
Model: X (S) N-75 × 30
Kneading the total volume: -------------------------------- 180L
The total volume of mixing: --------------------------------- 75 L
Drive motor power: ------------------------------ 110KW
Turn the motor power: ------------------------------ 4.0KW
Flip angle: ----------------------------- 130 °
Rotor speed (front / rear): -------------------- 30 / 24.5r / min
Working pressure of compressed air: ------------------- 0.6-0.8 Mpa
Compressed air consumption (about): ----------------- ≥ 1.0m3 / min
Cooling water working pressure (rubber mixing): --------------- 0.3-0.4 Mpa
Heating steam working pressure (refining): -------------- 0.5-0.8 Mpa
Overall dimensions: ----------------- L3760mm W2280mm H3120mm
Weight: ------------------------------ 10500 kg
