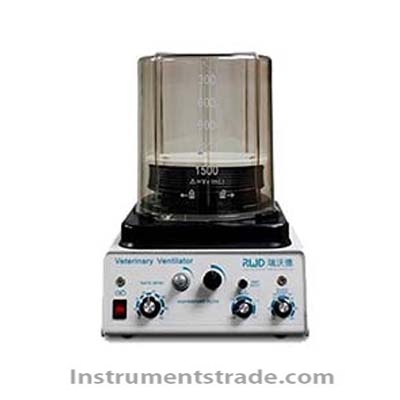

RWD409 Veterinary Ventilator

Product ID：SHDWhxj006

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberRWD409
Brand NameYM
Payment TermsT/T, paypal

Introduction
The device,an electronically controlled,time-cycled and
pressure-limited ventilator for animal laboratories, pet hospital, clinics etc, is specially designed to help the respiration of animals within 100 kg including rabbits, dogs, monkeys, pigs, sheep etc. Also, it can be connected to other anesthesia machines like R610IP and R620IP for the delivery of anesthesia gas to the animals. Multiple parameters including volume control, airway pressure trigger, adjustable respiratory rate and I: E ratio, alarm detection and so on could be available to preset in this unit.
Features
Two different sizes of bellows (0-300ml and 300-1500ml) are available to interchange.
The tidal volume output ranging 200-1500ml adapts to animals with different body weight.
Maximum working pressure limit (MWPL) could be adjustable from 10-60 cmH2O to prevent the animals from the damage of excessive airway pressure.
Both LED and sound alarm, and intelligent trigger are setup to release the proximal airway pressure which is monitored real time.
Respiratory rates from 6-40BPM at inspiratory flow rates from 0-100 LPM are adjustable.
More economical use of supply gas (oxygen, nitrogen or clean dry air) can be used for this unit.
I: E ratio (1:1.5-1:4) can be adjustable real time while operating.
Effective intermittent positive pressure ventilation (IPPV) is available.
Both one-key “Hold” and sound-light alarm allow to stop the machine temporarily towards unexpected events.
LED indicator (always “ON”) shows the normal energized state of device.
110/220V switch button corresponding to the local voltage are available.
Compact design, easy to portable and humanized design make operation simple and convenient.
Technical Parameters
Parameters Setting: Tidal Volume (VT), Airway Pressure, I:E Ratio and Respiratory Rate
Power: AC 110 / 220V,50/60Hz
Ventilation Modes: IPPV
Gas Supply Pressure: 35~65 Psi (2.4~4.4 Bar)
Tidal Volume: 0-1500ml (small bellows, 20-300 ml and big bellows, 300-1500 ml)
Maximum working pressure limit (MWPL): 10~60 cmH2O, linear adjustable
I: E:1:1.5, 1:2, 1:3 and 1:4, linear adjustable
Respiratory Rates: 6-40BPM
Air Overflowing Pressure: ≤5 cmH2O
Physical Sizes: 225mm(L)*280mm(D)*320mm(H)
Weight: 5.8 kg

The device,an electronically controlled,time-cycled and ressure-limited ventilator for animal laboratories, pet hospital, clinics etc, is specially designed to help the respiration of animals within 100 kg including rabbits, dogs, monkeys, pigs, sheep etc. Also, it can be connected to other anesthesia machines like R610IP and R620IP for the delivery of anesthesia gas to the animals.
