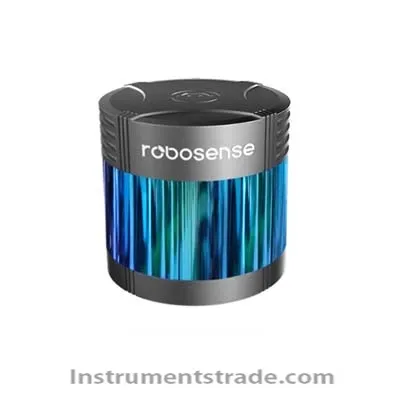

RS-LiDAR-32 laserradar Introduction: RS-LiDAR-32 is a series of 32-line hybrid solid-state laser radar products produced by our company. RS-LiDAR-32 is a small laser radar designed and developed based on the needs of the car manufacturer. It is designed to meet the needs of high-speed automatic driving. The main RS-LiDAR-32B product adopts the laser head layout design with dense inner side and vertical angle 40. °, the minimum vertical angle resolution is 0.33°, which makes the 32 lines better than the 64 lines, and more focused on point cloud data acquisition in the vehicle driving area. Features: 1. Vertical angular resolution of 0.33°, more attention to the front data The RS-LiDAR-32B adopts a laser-head alignment scheme with a dense center and two sides. It is more focused on the laser radar data acquisition in the vehicle's driving area. There are 20 harnesses with a vertical resolution of 0.33° in front, allowing the RS-LiDAR32B to be in front. The ability of the obstacle is greater than or equal to 64 lines (0.4°). 2. Detection distance 200m The RS-LiDAR-32 series has a maximum range of 200 meters, which allows for more observation time for autonomous vehicles driving at high speeds. Technical Parameters: Harness: 32 lines Wavelength: 905nm Laser rating: class1 Accuracy: ±5cm (typical) Measuring distance: 0.2m ~ 200m (target reflectivity 20%) Number of points: 640,000pts/s Vertical field of view: +15° ~ -25° Vertical angular resolution: minimum 0.33o Horizontal field of view: 360o Horizontal angular resolution: 0.09o to 0.36o (5-20Hz) Input voltage: 9-32VDC Product power: 13.5w (typical) Protection level: IP67 Operating temperature: -10 ° C ~ +60 ° C Specifications: φ114mm*108.73mm (RS-LiDAR-32B) Weight: 1.0kg (RS-LiDAR-32B) Collect data: 3D space coordinates, reflectivity
Introduction: RS-LiDAR-32 is a series of 32-line hybrid solid-state laser radar products produced by our company. RS-LiDAR-32 is a small laser radar designed and developed based on the needs of the car manufacturer. It is designed to meet the needs of high-speed automatic driving. The main RS-LiDAR-32B product adopts the laser head layout design with dense inner side and vertical angle 40. °, the minimum vertical angle resolution is 0.33°, which makes the 32 lines better than the 64 lines, and more focused on point cloud data acquisition in the vehicle driving area.
