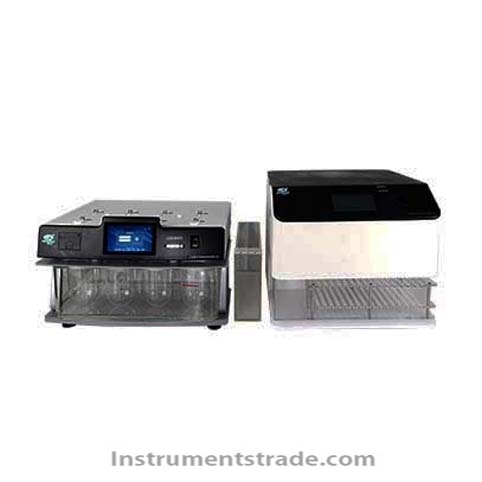

RQ810G dissolution sampling collection system Introduction: The RQ810G dissolution sampling collection system is a dissolution sampling tester composed of a RC810G dissolution apparatus and a QY8 sampler. It is fully compliant with the 2015 editions of the Chinese Pharmacopoeia and the United States Pharmacopoeia. 8 sampling channels 20ml effective sampling volume, 15ml single collection volume, 100ml single sampling volume. Features: 1. It can realize the test of basket method, paddle method, small cup method, dish method (large and small dishes), and rotating drum method (long and short tube), meeting the requirements of blank and control 2. Electric head lift 3. Automatic fixed height clutch 4. Function of simultaneous dosing and sequential dosing 5. Two-color lighting system 6. Use precision glass syringe as sampling power 7. Adopt high precision, high pressure resistance, high chemical stability valve body 8. Built-in micro printer 9. Optional WiFi, Bluetooth, RS232, RS485 expansion interface 10. 16 test tube rack, can hold 128 test tubes at most 11. High sensitivity capacitive touch screen 12. Multi-user management 13. Rights Management 14. Audit trail technical parameter: Model: RQ810G Experimental device: 8 channels Temperature resolution: 0.01℃ Stirring speed: 25RPM—250RPM Stirring speed resolution: 0.1RPM Lighting system: red light, white light Sampling times: 16 times Continuous working time: 99 hours 59 minutes × 16 Sampling and filtering cycle: <30 seconds Sampling volume (or fluid supplement volume): 1ml—100ml Dispensing volume per tube: 0ml-15ml Sampling accuracy: RSD1% (10ml) User programs: 99 Number of users: 7 users User level: Level 3 Record keeping: 128 records*366 days
Introduction: The RQ810G dissolution sampling collection system is a dissolution sampling tester composed of a RC810G dissolution apparatus and a QY8 sampler. It is fully compliant with the 2015 editions of the Chinese Pharmacopoeia and the United States Pharmacopoeia. 8 sampling channels 20ml effective sampling volume, 15ml single collection volume, 100ml single sampling volume.
