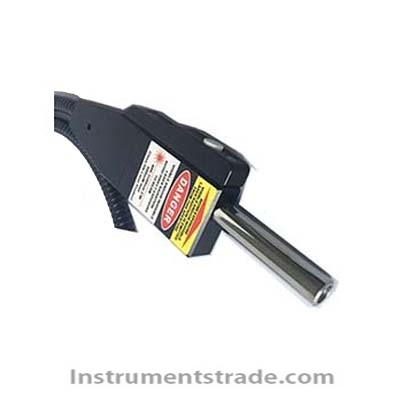

RPB-532-1.5-S 532nm Raman probe Introduction
The 532nm Raman probe is used with a 532nm semiconductor laser and fiber spectrometer to achieve Raman spectroscopy measurement applications. Equipped with different sampling brackets to achieve Raman spectroscopy measurement of solid, liquid or powder samples. Features
1.Spectral range: 150cm-1 -7000cm-1;
2.Cut-off depth> OD6;
3.Product assembly process guarantees consistency;
4.Start beam consistency: Start <150cm-1. Technical parameter
Product Specifications: RPB-532-1.5-S
Size: Main parts: 122x30x13 mm duralumin matte blackened / probe: 45 stainless steel
Exit fiber: 105μm core diameter, VIS-NIR band
Receive fiber: 200μm core diameter, VIS-NIR band
Armor specifications of the combined part: Φ8.5mm, PVC black outer armor
Optical fiber (combined section): 115cm
Optical fiber (split beam section): 30cm
Wire harness: N.A.
Trigger device: N.A.
Connect the laser terminal: SMA905
Connect spectrometer terminal: SMA905
Applicable laser wavelength: 532nm
8.5mm protective tube can withstand tensile force: 50N
Rayleigh scattering cut-off depth: OD8
Raman spectrum working range: 150cm-1-4000cm-1
Probe working distance: 7.5 mm (standard)
Probe overall exit coupling efficiency: ≥80%
Working temperature: 0-80 ℃
Working humidity: 5% -80%
Introduction
The 532nm Raman probe is used with a 532nm semiconductor laser and fiber spectrometer to achieve Raman spectroscopy measurement applications. Equipped with different sampling brackets to achieve Raman spectroscopy measurement of solid, liquid or powder samples.
