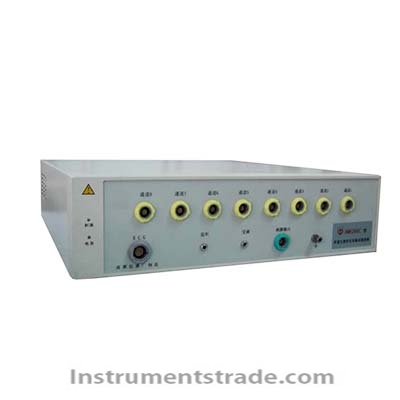

RM6280 Multi-channel physiological signal analysis system for Myocardial Infarction Research

Product ID:SHDWqt007

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberRM6280
    Brand NameYM
    Payment TermsT/T, paypal
    Features:
    1. System has Medical Device Registration Certificate and measuring instruments CMC certificate.
    2. The human research-based machine (C-type or B-type) adopts full floating isolation amplifier, not only for animal experiments can also be used in human experiments. On human experiments it can be used for ECG (international standard 12 kinds of leads mode), heart sounds, pulse, blood pressure, EEG, EMG, EOG, skin electrical and other experiments. And it has oximetry measuring module which can measure human blood oxygen saturation.
    3. External model has cascading extensions function; USB2.0 high-speed type interface.
    4. Maximum continuous sampling frequency: Use a channel to reach 400kHz, using two channels reach 200kHz, using a four-channel reach 100kHz; sampling frequency is programmable adjustable.
    5. All channels using Japanese optoelectronic technology, are multi-functional fully programmable isolation amplifiers (by mode selection, amplifier in each channel can make bioelectric amplifiers, blood pressure amplifiers, bridge amplifier, and also for spirometer (Matching flow transducer), thermometer (Matching temperature transducer) and so on.
    6. Scan speed is continuously adjustable, each channel can not only process synchronization adjustment but also asynchronous adjustment.
    7. Amplifier input resistance is high, common-mode rejection ratio is large, noise is low; amplifier in each channel has good isolation performance; no crosstalk between channels.
    8. Amplifier frequency response is wide, waveform distortion is small; input range large; high sensitivity; the size of the measured signal can be directly read.
    9. Eight grade hardware low-pass filter, parameters setting is reasonable, programmable adjustable.
    10. Software digital filter high-pass, low-pass, band-pass, band-stop, this four models feature allows the machine to further improve the performance of the experiment. (Filtering parameters is arbitrary adjustable)
    11. Use built-in high-performance classification power supply, instruments anti-interference ability is very strong.
    12. Programmable stimulator uses optoelectronic fully isolation technology, the output voltage range is safe and reasonable, power is big, has good load capacity. Can produce a single pulse, double pulse, pulse train, continuous pulse, timing, and other stimuli automatic mode; output: positive voltage, negative voltage, positive current, negative current.
    13. The matching transducers is our factory original created scaling transducer (has applied for patent), has features like high accuracy, low drift, interchangeable, multi-purpose. Scaling type pressure transducer matched with flow head which can act as a pressure transducer, but also as a respiratory flow transducer.

    Technical Specifications:
    1.The maximum sampling frequency: 400kHz (USB2.0 interface model)
    2.Scan speed: 0.2ms/div~3200s/div
    3.Amplifier input resistance ≥100MΩ (double-ended input)
    4.CMRR ≥100dB
    5.Noise ≤ ± 1μV (RMS) or ≤ ± 3μV (P_P)
    6.Frequency response: DC ~ 10kHz
    7.Input range: 5μV ~ 500mV
    8.Sensitivity:
    a) Bio-electric mode : 20μV/div~500mV/div
    b) Blood pressure mode : 0.48~24 (kPa/ div) or 3.6~180 (mmHg / div)
    9. Low-pass filtering ( hardware ): 3Hz, 10Hz, 30Hz, 100Hz, 500Hz, 1kHz, 3kHz, OFF
    10.The time constant (hardware): 0.001s, 0.002s, 0.02s, 0.2s, 1s, 5s, DC
    11.Programmable stimulator:
    a) Stimulation amplitude: Constant voltage: 0~50V; constant current: 0~10 mA
    b) Delay: 0.1~1000 ms
    c) Wave interval: 0.1~1000 ms
