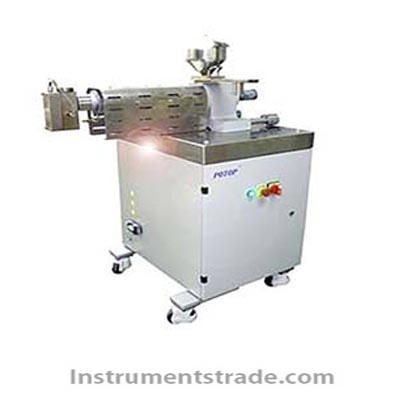

RESM-20 Rheometer Workstation - Single Screw Extrusion Module
Introduction: Rheometer Workstation-Single Screw Extrusion Module is a functional module for plasticizing, melting and quantitative extrusion of materials in extrusion testing. Features: 1. It is connected with the main measurement and control module to form a single-screw extruder with independent functions, which can complete the transportation, plasticization and measurement of materials 2. The plasticizing extrusion of different materials is realized by selecting screws with different structures 3. Provide a well-plasticized and extrusion-stable flow for capillary rheological testing Application range: 1. Plasticization and transportation of materials 2. Recipe design 3. Optimization of production process parameters 4. Cooperate with related die heads to realize small-scale production of small pipes, profiles, films or sheets Technical parameter: Model: RESM-20/25 Screw diameter: 20 mm Aspect ratio: 25 L/D Temperature: 350℃ Temperature control accuracy: ±1℃ Heating/cooling method Electric heating/wind cooling Output: 5 kg/h Total power: 4 kW Total mass: 300 kg L×W×H: 860×690×1270 mm
