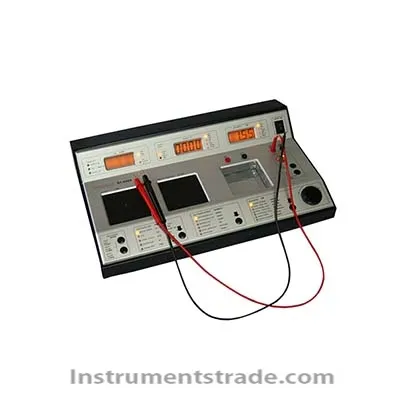

QTEST6000 Quartz Watch Tester Introduction: The QTEST6000 quartz clock tester is an intelligent testing instrument containing a microcomputer system. Not only can it perform detection, but it can also store information, calculate and process test data, and develop programs. According to microcomputer judgment, the instrument can automatically adjust, balance, and select the optimal range and optimal equivalent measurement circuit. In addition to conducting inspections on multiple different parameters and multiple products with the same parameter, multi-sensor inputs can also perform multivariate function processing. We solemnly promise that our QTEST6000 performs better than similar products from other companies. Features: 1. Estimate errors for various quartz watches, tuning forks, and mechanical watches. 2. Integrate measurement of the consumed current. 3. Provide a variable voltmeter power supply and measure the initial voltage. 4. Resistance measurement, short circuit and open circuit testing. 5. Use a pulse generator to check the stepper motor. 6. Alarm testing. 7. Watch battery test. 8. Program and adjust the watch through EEPROM. 9. Print the test protocol on the printer (optional). Technical parameters: Quartz time base: maximum temperature drift ± 0.01 seconds/day (at 10-30 ℃), maximum annual aging rate 0.05 seconds/day (after one year) Deviation measurement range: ± 9.99 seconds/day or ± 300 seconds/month Measurement accuracy: ± 0.01 seconds/day or ± 1 second/month Measurement time: adjustable from 1-960 seconds Power consumption measurement range: uA range 0-100uA accuracy: 1uA 0-1 mA accuracy: 10uA, mA range 0-10mA accuracy 10uA 0-20mA accuracy 100uA. The safety values for the second gear are 5mA and 100mA respectively, and the measurement time is infinitely adjustable from 1 to 60 seconds. Battery voltage measurement range: 0-5 V Resistance measurement range: 1 K Ω, 10K Ω, 100K Ω, l M Ω, 5 M Ω, freely selectable. Measurement time: 1 second Pulse generator: pulse width 1-8Oms adjustable Frequency: 16Hz (<16ms) 8 Hz (>16ms) Polarity: Bidirectional voltage: 0-3.5V Buzzer test: frequency 2 KHZ Pulse voltage: 0-3.5V adjustable External dimensions: 354 x 233 x 75 (mm) Weight: 2.6kg
Introduction: The QTEST6000 quartz clock tester is an intelligent testing instrument containing a microcomputer system. Not only can it perform detection, but it can also store information, calculate and process test data, and develop programs. According to microcomputer judgment, the instrument can automatically adjust, balance, and select the optimal range and optimal equivalent measurement circuit. In addition to conducting inspections on multiple different parameters and multiple products with the same parameter, multi-sensor inputs can also perform multivariate function processing. We solemnly promise that our QTEST6000 performs better than similar products from other companies.
