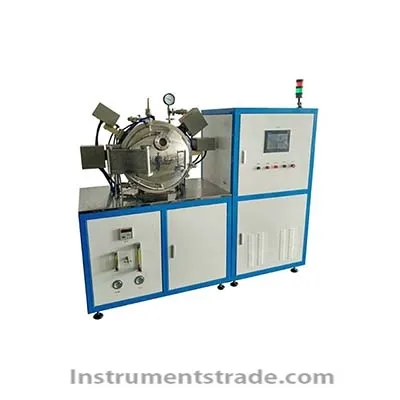

Introduction: QS-type microwave atmosphere sintering furnace is a standardized multi-functional microwave high-temperature experimental workstation, suitable for a variety of atmosphere, vacuum synthesis, roasting, heat treatment, sintering and other processes. Features: 1. Using industrial-grade microwave sources, the microwave output power can be adjusted steplessly to ensure continuous and stable operation of the equipment for a long time. 2, a variety of original and special insulation and insulation structure for selection, no pollution to the material. 3. Process studies for various reactions can be conducted at 1600°C. 4, greatly improve the experimental efficiency, material heating speed, uniformity, sintered material, small crystal grains, good performance. 5, furnace body and vacuum system integrated design, simple structure, safe and reliable Technical Parameters: Model: QS3016 Voltage: 380±10V 50Hz Three-phase Rated power: 6KW Microwave output power: 0.01 to 2.80kW continuously adjustable Microwave frequency: 2.45GHz Working temperature: ≤1600°C Heating space: Φ150×120mm (diameter × height) Temperature measurement method: Infrared thermometer Temperature range and accuracy: 300～1800°C; reading ±0.1% Static limit vacuum: ≤10Pa Atmosphere system: Two-way atmosphere control piping, rechargeable oxidizing gas, inert gas, reducing gas, etc. Heating platform rotation seal and rate: magnetic fluid; 4-6rpm Control method: PLC (brand: Mitsubishi); touch screen (brand: Schneider) Control program: 40 sections can set process parameters, with data storage, export experimental data; can be manual, automatic, constant temperature control mode, curve real-time display; dynamic data screen saver Anti-microwave leakage: microwave leakage level<0.05mW/cm2 Magnetron alarm: over-temperature alarm, over-current alarm Door protection alarm: furnace door close switch Cooling water alarm: flow alarm Mobile circulating cooling water: flow rate 2m3/h, rated cooling capacity 3.6KW The main part: about 2100×1000×2000mm (length×width×height)
Introduction: QS-type microwave atmosphere sintering furnace is a standardized multi-functional microwave high-temperature experimental workstation, suitable for a variety of atmosphere, vacuum synthesis, roasting, heat treatment, sintering and other processes.
