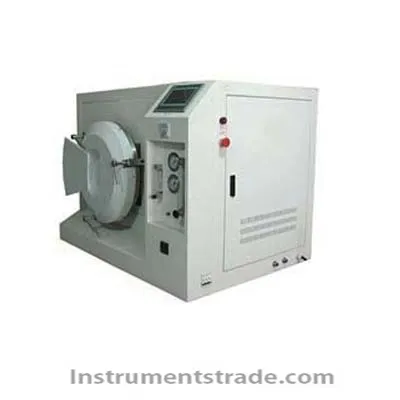

Introduction: The QS-type microwave atmosphere experimental furnace is a standardized multi-functional microwave high-temperature experimental workstation with experimental conditions of rapid vacuum, controlled multi-atmosphere and high temperature, suitable for the calcination, roasting, sintering, ashing, incineration, melting and heat treatment of various materials. Wait. Features: 1. The integrated design of the furnace body and the vacuum system has a simple structure and is safe and reliable. 2. It adopts industrial-grade microwave sources, and the microwave output power is infinitely adjustable to ensure continuous and stable operation of the equipment for a long time. 3, non-contact heating, safe and clean, no pollution. 4, special insulation structure, energy efficient. 5, greatly improve the experimental efficiency, the material heating speed, uniformity, sintering materials, small crystal grain, good performance. Technical Parameters: Model: QS1512 Voltage: 220±10V 50Hz Three-phase Rated power: 4KW Microwave output power: 0.01~1.40kW continuously adjustable Microwave frequency: 2.45GHz Working temperature: ≤1200°C Heating space: 140×140×70mm (length×width×height) Temperature measurement method: Thermocouple Temperature range and accuracy: 0～1300°C; reading ±0.1% Static limit vacuum: ≤100Pa Atmosphere system: rapid pre-vacuum, two-way atmosphere control pipeline, rechargeable oxidizing gas, inert gas, weak reducing gas, etc. Control method: PLC (brand: Mitsubishi); touch screen (brand: Schneider) Control program: 40 sections can set process parameters, with data storage, export experimental data; can be manual, automatic, constant temperature control mode, curve real-time display; dynamic data screen saver Anti-microwave leakage: microwave leakage level<0.05mW/cm2 Magnetron alarm: over-temperature alarm, over-current alarm Door protection alarm: furnace door close switch Main part: 1150×850×800mm (length×width×height)
Introduction: The QS-type microwave atmosphere experimental furnace is a standardized multi-functional microwave high-temperature experimental workstation with experimental conditions of rapid vacuum, controlled multi-atmosphere and high temperature, suitable for the calcination, roasting, sintering, ashing, incineration, melting and heat treatment of various materials. Wait.
