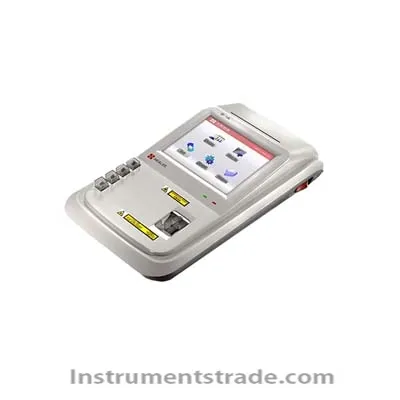

QR-100 specific protein analyzer Introduction
Fast - new immunoassay system, get results in 1 minute
Quantitative - immunoturbidimetric system, high sensitivity and wide range detection
Reliable - full blood pressure product value correction function and serum sample dilution function
Convenient - RF non-contact reagent card, man-machine dialogue operation
CRP detection is a cost-effective indicator for the differential diagnosis of bacterial and viral infections. Continuous monitoring is of great significance for the diagnosis and efficacy monitoring of postoperative infections of other inflammatory and malignant diseases. Features
Detection principle: nano-amine-based microsphere immunoturbidimetric system, high sensitivity, wide inspection range;
Detection mechanism: laser type cold light source integrated design, easy to assemble and replace;
Number of channels: single channel or dual channel, independent test by project; (QR-200 is dual channel, simultaneous measurement function)
Detection method: automatic and timely detection, the test cup is automatically numbered and tested after being placed in the test body;
Detection operation: touch operation, intelligent temperature control, mixing, automatic interpretation of blanks and calculation of results;
Sample type: whole blood, plasma, serum, urine, etc., sample dilution factor can be entered and automatically converted results;
Project selection: non-contact RF type reagent card, only need to read the card once on the same item;
HCT calibration: HCT values are automatically calibrated for each whole blood sample, consistent with serum results;
Output: Same screen display, printing and RS232 sync output. Technical Parameters
1. Whole blood HCT: 00.00 ~ 99.99% can be set;
2. Sample dilution: 1 to 50 times optional;
3. Detection speed: 20 ~ 120sec / test;
4. Storage: 10,000 results of the same day;
5. Temperature control: 25 ° C constant temperature detection;
6. Sample type: no whole blood, venous whole blood, serum, plasma, urine optional;
7. Sample number: Automatic numbering on the same item from 1 to 999, optional barcode scanner;
8. The same specimen is tested for blanks and reactions, and the quantitative results are automatically displayed;
9. Test items: whole blood CRP, urine MA, serum CYS-C;
10. Power: 12V DC (100V-240V wide input);
11. With LIS system interface, data can be transmitted;
12. Optional external printer, print the results;
