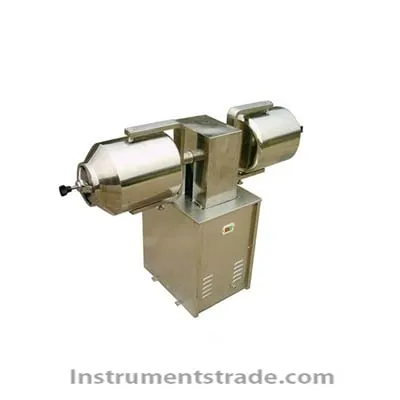

QM - 16 x 2 ball mill

Product ID：HZYJywym012

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberQM - 16 x 2

Brand NameCDSRDJX

Payment TermsT/T, paypal

Brief introduction:
This machine is suitable for ultra-fine grinding and mixing of materials in pharmaceutical, food, chemical, biological engineering and other fields, especially for biological products and materials with high cleaning requirements.
This machine can be dry ground or wet ground according to the properties and process requirements of materials. According to different materials, the reversible tank body mounted on the support can be very convenient for feeding and discharging materials. At the same time, it is easier to disinfect the machine.
Technical parameters:

Model	QM-6.5×2	QM-10×2	QM-14×2	QM-16×2	QM-20×2
Cylinder volume (L)	13	20	28	32	40
Cylinder speed (r/min)	45	45	75	75	75
Ball grinding fineness (mesh)	More than 200	More than 200	More than 200	More than 200	More than 200
Motor power (kw)	0.75	0.75	1.1	1.1	1.5
Machine weight (kg)	120	120	150	150	150
