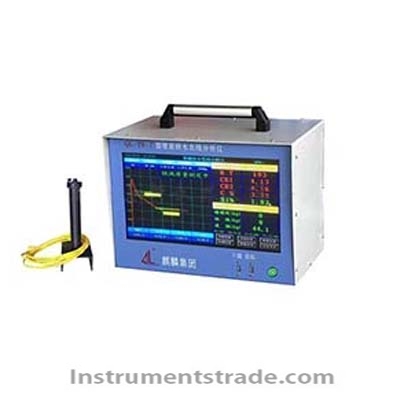

QL-TS-7 casting furnace front hot metal analysis equipment Introduction:
Casting furnace before the analysis of molten iron, QL-TS-7 intelligent hot metal online movement analyzer is the user casting industry in hot metal online rapid analysis of equipment, instead of conventional analytical instruments can not meet the rapid analysis of furnace time requirements, the casting production Quality control plays a big role. The advantage of this product is rapid analysis, the mobility of a multi-purpose machine, the use of simple, convenient and fast, can control the quality of cast iron in front of the furnace, saving time and saving manpower. Features:
1, white mouth, gray cast iron C%, Si%, CE, SC, △ T, △ TM, RM and other parameters of the measurement;
2, fanless industrial motherboard with a military-grade hard drive and industrial-grade 17-inch display constitutes a digital platform for industrial computers to adapt to the harsh casting environment to ensure the stability and accuracy of the original hot metal analysis data;
3, According to the characteristics of the foundry industry, independently developed hot metal analysis software, with simple operation, a key start and humane human-machine interface and according to the predetermined target component and the iron content of the automatic calculation of ingredients and other characteristics;
4, software functional diversity, conventional determination of carbon and silicon content and the ball after the ball rate determination to meet the different needs of customers;
5, For the casting of complex electrical environment, the anti-interference bearing design, imported temperature compensation conductor and the overall electrical interference design of the instrument ensure the stability and accuracy of the analysis data;
6, carbon, silicon compensation correction: According to the chemical analysis of the data can be adjusted to compensate carbon-silicon value;
7, cooling curve and measurement data CE, C%, Si%, TL, TE at the same time display, clear and intuitive. Technical Parameters:
Measurement functions: Iron and steel grades, carbon equivalent, carbon content, silicon content, degree of undercooling, tensile strength and so on.
Measuring range: Carbon equivalent CE Measuring range 3.2% ~ 4.8% Accuracy ± 0.08%
Carbon content C Measurement range 2.8% ~ 4.2% Accuracy ± 0.04%
Si Content Si Measurement Range 0.9% ~ 3.0% Accuracy ± 0.04%
Measurement time: 90 seconds
Ingredients calculation: According to the scheduled target ingredients and iron content automatically calculate the ingredients;
Setting function: 8 calibration lines can be set, 8 target components, calibration curve and the target material linkage;
Record function: according to measuring time sequence, can record 3000 measurements, can be reproduced;
Browse function: Can browse the main measurement parameters of the trend map, the condensation curve of the differential humidity;
Output function: optional measurement record output to the U disk function.
