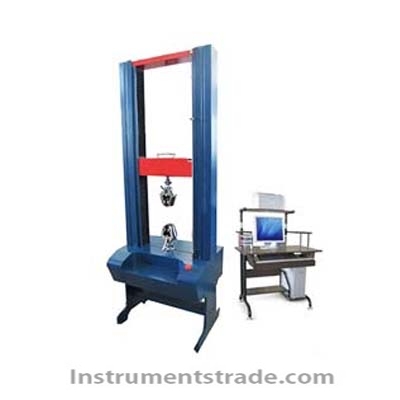

QJ211 glass material bending test machine

Product ID:WSHnw014

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberQJ211
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    This machine is suitable for all kinds of mobile phone glass, computer screens, television screen material such as glass, toughened glass, glasses of four-point bending test, deserve to go up leaning skills fixture also can complete different materials of three point bending, tensile, shear and compression, Pierce and other mechanics test, can meet the GB, ISO, JIS, ASTM, DIN, JG, JT, YB, QC, SY, QB, YD, YY, SL, BB, HG and other international standards and industry standards, has a powerful digital display system and microcomputer control system, the whole LCD CNC set the required parameters, curves, displacement, force value can dynamic display on the LCD digital display device, connecting computer printers achieve full computer control and print the standard test report; With the Windows operating system to make test data curve
    Technical parameters:
    Precision level: 0.5 on the Richter scale are unlikely
    The maximum load: 30 kn (30 kn in internal force values of arbitrary change);
    Effective load range: 0.02/100-100%;
    Test force resolution, maximum load 500000 yards; Don't step inside and outside, and the entire resolution remains the same.
    Effective test width: 320 mm
    Effective tensile space: 500 (800) mm
    The test speed: 0.01 to 300 mm/min
    Speed: precision within + / - 0.5% of value;
    Displacement measurement accuracy: the value plus or minus 0.5%;
    Deformation measurement accuracy: the value for + / - 0.5%; Try lifting gear: fast/slow two kinds of speed control, can be mobilized;
    Try set safety protection device: software automatic diagnosis, electronic limit;
    Overload protection: more than 10% when the maximum load, automatic protection;
    Tooling/fixture configuration: according to customer's product sample request custom;
    Motor: 2 kw to 5 kw

    Host: weight about 145 kg

  • Brief introduction:
    This machine is suitable for all kinds of mobile phone glass, computer screens, television screen material such as glass, toughened glass, glasses of four-point bending test, deserve to go up leaning skills fixture also can complete different materials of three point bending, tensile, shear and compression, Pierce and other mechanics test, can meet the GB, ISO, JIS, ASTM, DIN, JG, JT, YB, QC, SY, QB, YD, YY, SL, BB, HG and other international standards and industry standards, has a powerful digital display system and microcomputer control system, the whole LCD CNC set the required parameters, curves,
