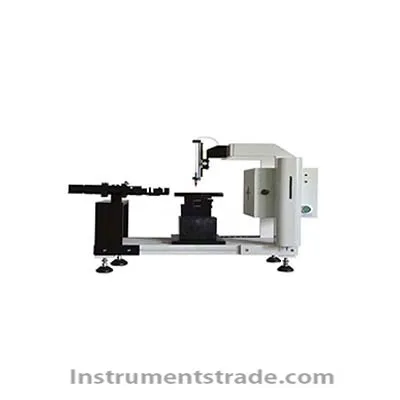

PT-705 semiconductor silicon wafer drop angle measuring instrument

Product ID:WBjzj017

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberPT-705
    Brand NameDGPST
    Payment TermsT/T, paypal
    Introduction:
    Water drop angle tester is used to measure the wettability of liquid to solids. The instrument can be widely used in petroleum and chemical industry by measuring the contact angle of liquid to solid, calculating and measuring the free energy of liquid, ie the adhesion of liquid to solid, tension and other indicators. In the fields of medicine, paper making, exhaustive materials, etc., for scientific research and teaching purposes, the contact angle meter series manufactured by our company provides different types of instruments according to the different needs of users.
        The water drop angle tester is a standard type instrument for measuring the solid contact angle (water drop angle), surface energy and the like, and the surface tension of the liquid. Using advanced optical video measurement technology, the images taken by high-precision industrial cameras are sent to computers for data processing. The functions are complete and the operation is very convenient. Meets ASTM D 724, ASTM D 5946, ISO 15969 and other standards. It is widely used in quality testing of laboratories in industrial and mining enterprises and scientific research in universities.
     Features:
    1. Advanced CCD digital camera with high resolution, high precision and high resolution digital high definition; the highest resolution: 1280×1024, frame rate: 15 or 45/second,
    2. High-brightness LED background light source system with uniform light emission and continuously adjustable brightness;
    3. The direction of the sample introduction system is adjustable (up, down, left, right, and tilt) to easily obtain the required droplets;
    4. The use of micro-injection device can accurately control the size of the droplet, manual control up to 0.1μl (using a high-precision injection pump up to 0.005μl);
    5. Three-dimensional sample stage;
    6. CONTA 3.0 contact angle analysis software, based on WINDOWS XP and WINDOWS 7 and other operating platforms, with friendly interface, convenient operation, powerful functions and accurate measured value:
    1 The contact angle method measures the surface tension of a solid. Automatic calculation functions include: θ/2 method, tangent method to calculate the contact angle, can be calculated automatically or manually (corrected); left and right contact angle contrast; multi-point contact angle comparison;
    2 One-liquid, two-liquid surface free energy, droplet volume, and solid adhesion force calculations;
    3 dynamic contact angle analysis system, can take pictures continuously, automatically record changes in contact angle at different times, carry out analysis of advancing angle, receding angle, tilt angle and rolling angle;
    4 The hanging drop method is used to measure the surface tension of liquids. The latest calculation functions include: S-H table method and shape factor method;
    5 The horizontal calibration method combining software and hardware can accurately and conveniently find the horizontal baseline;
    6 Test results are saved in the database in the form of test reports. Compressible backups and automatic generation of EXCEL files are available.
    7 test environment settings, liquid dictionary maintenance;
    8 Software brightness correction function.
    Technical Parameters:
    1. Contact Angle Measurement Range: 0-180° Contact Angle Measurement Accuracy: +/- 0.1°
    2, contact angle test method: seat drop method
    3, contact angle analysis methods: manual level measurement, manual slope measurement, width and height measurement method, manual tangent method
    4, 2x fixed high definition microscope
    5, digital CMOS camera
    6, video / playback
    7, instantaneous screenshot
    8, video recording any movie leaflet
    9, the working table size: 100mmX120mm
    10, working table size: 100mm*120mm
    11. Work Taiwan Mobile: Under 50mm About 50mm Before and After 30mm
    12, table up and down stretching: 30mm
    13, table fixed board movement: before and after 150mm
    14, sampler moves: up and down about 100mm 100
    15, the microscope moves: before and after 80mm (trimming 3mm)
    16, sample size: 100mm (width) 80mm (thickness) X ~
    17, the instrument dimensions: 320mm (width) * 530mm (length) * 430mm (high)
