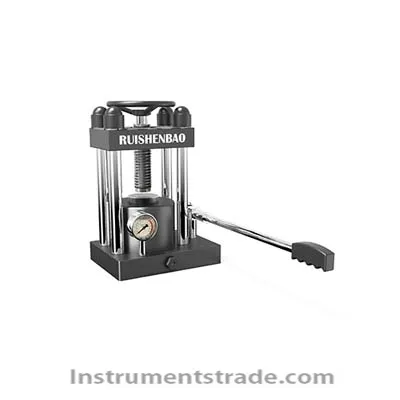

PrepP-01L Ultralight Manual Hydraulic Press

Product ID:SYZXyp038

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberPrepP-01L
    Brand NameRUISHENBAO
    Payment TermsTT,PAYPAL
    PrepP-01L Ultralight Manual Hydraulic Press
    Introduction:
    The PrepP-01L manual hydraulic press can be used for X-ray fluorescence spectroscopy and infrared sample compression. It uses a pointer pressure gauge to monitor pressure changes in real-time, accurately and reliably. The main body is made of ultra light superhard material, which reduces the weight by 50%, and is more suitable for field or field sample preparation. The device is compact and can be placed on a desktop, with a maximum pressure of up to 20T.
    characteristic:
    1. The maximum pressure is 20T, which has sample preparation performance comparable to conventional presses.
    2. Reduce weight by 50%, making it more suitable for portable use in the wild or on site.
    3. Small size, can be placed on a desktop without the need for a dedicated sample room.
    4. Efficient manual rod transmission design to improve sample preparation efficiency.
    5. Equipped with superhard wear-resistant special alloy steel molds, with a long service life, and a key part smoothness of Ra0.4, the resulting pressed surface is flat.
    6. The use of ultra-thick steel plates and large diameter handwheels saves labor and provides more reliable performance.
    Technical parameters:
    Model: PrepP-01L
    Maximum pressure: 20T
    Working mode: manual
    Working pressure: 0-20T
    Working temperature requirement: 0-40
    Pressure regulation accuracy: 0.1T
    Hydraulic oil: anti wear hydraulic oil 46#
    Size (L × W × H)        300 × two hundred and fifty × 600mm
    Net weight: 25kg

  • Introduction:
    The PrepP-01L manual hydraulic press can be used for X-ray fluorescence spectroscopy and infrared sample compression. It uses a pointer pressure gauge to monitor pressure changes in real-time, accurately and reliably. The main body is made of ultra light superhard material, which reduces the weight by 50%, and is more suitable for field or field sample preparation. The device is compact and can be placed on a desktop, with a maximum pressure of up to 20T.
