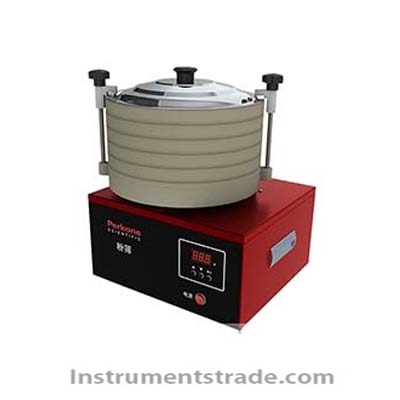

PPS-308 powder sieve Introduction
PPS-308 round electric powder inspection sieve is designed according to the national standard GB/T 5507-2008 "Grain and oil inspection powder thickness measurement", used to determine the thickness of powder grain particles. Its compact structure and strong applicability. The circular electric powder inspection screen is driven by the motor through the worm gear to drive the screen body to make a rotary motion in the three-point support plane, thereby sifting the powder sample inside the sieve tray. It is easy to operate and stable in performance. It is suitable for flour mills, grain and oil food inspection institutes, and quality supervision bureaus of the Quality Supervision Bureau. Features
Compact and rugged, it is suitable for demanding work environments such as flour mills
Operated by the single-chip computer control device, high timing accuracy, good screening effect
It has many functions such as emergency stop, work plan, automatic zero reset, etc.
With a variety of screens, in line with national standards, to meet a variety of needs:
CQ10, 25 mesh
CQ16, 41 mesh
CQ20, 51 mesh
CQ27, 69 mesh
CB30, 76 mesh
CB36, 91 mesh
CB42, 106 mesh Technical parameters
Instrument Name: Powder Screen
Power: AC220V 50HZ
Rated power: 50W
Sieve plate diameter: 300mm
Screen height: 30mm
Speed: 260 r/min
Sifting amplitude: 50mm
Timing time: 0-999s
Introduction
PPS-308 round electric powder inspection sieve is designed according to the national standard GB/T 5507-2008 "Grain and oil inspection powder thickness measurement", used to determine the thickness of powder grain particles. Its compact structure and strong applicability. The circular electric powder inspection screen is driven by the motor through the worm gear to drive the screen body to make a rotary motion in the three-point support plane, thereby sifting the powder sample inside the sieve tray. It is easy to operate and stable in performance. It is suitable for flour mills, grain and oil food inspection institutes, and quality supervision bureaus of the Quality Supervision Bureau.
