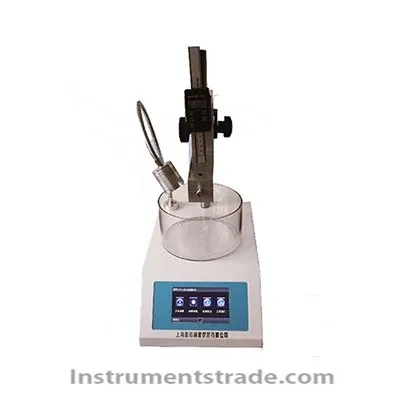

PNT-A1 Full Touch Screen Intelligent Penetration Tester
Introduction: The PNT-A1 penetration tester is based on the National Standard of the People’s Republic of China GB/T4509 "Determination of Petroleum Asphalt Penetration" and the People’s Republic of China Transportation Industry Standard JTG E20-2011 "Test Regulations for Highway Engineering Asphalt and Asphalt Mixtures" Designed and manufactured according to the technical requirements and relevant regulations of the People’s Republic of China GB/T 4985-2010 "Penetration Test Method for Petroleum Wax". It is mainly used for asphalt measurement and for testing the penetration of paraffin wax. It can also be used for materials such as solid particles, powders, colloids, frozen bodies, and foods such as cheese, sugar gum, butter, wheat lint, butter, fermented bodies, etc. Raw material inspection can be widely used in the food industry, transportation and highway engineering and other industrial sectors. Features: 1. The operation adopts a 5-inch touch screen, from the beginning of the needle insertion to loosen the weight, to the end of the needle insertion time to lock the weight, the whole process is automatically and accurately controlled by the instrument without manual intervention. 2. A digital display is used to display the penetration value, which is intuitive and eye-catching. 3. The needle entry timing control device adopts stepless adjustment, which can be adjusted arbitrarily from 0-5000 seconds, which can meet a wide range of needs. Users can choose arbitrarily according to the needs of the test, and the time control accuracy is high. 4. It has the functions of coarse and fine adjustment of the lifting frame, convenient adjustment and accurate needle alignment. Technical parameter: Display: 5-inch color touch screen Timing range: 0~5000 seconds arbitrarily selectable Timing accuracy: 0.1 second Displacement resolution: 0.01mm Penetration accuracy: ±1 penetration. Maximum penetration depth: 300 penetrations. Standard needle: 2.5±0.05g Needle and connecting rod: 50±0.05g Weight: 50±0.05g and 100±0.05g each Dimensions: 372*236*638mm Sample container: 70*45mm or 55*35mm Glass dish: φ175*98mm Power source: AC220V, 50Hz or customized
Introduction: The PNT-A1 penetration tester is based on the National Standard of the People’s Republic of China GB/T4509 "Determination of Petroleum Asphalt Penetration" and the People’s Republic of China Transportation Industry Standard JTG E20-2011 "Test Regulations for Highway Engineering Asphalt and Asphalt Mixtures" Designed and manufactured according to the technical requirements and relevant regulations of the People’s Republic of China GB/T 4985-2010 "Penetration Test Method for Petroleum Wax". It is mainly used for asphalt measurement and for testing the penetration of paraffin wax. It can also be used for materials such as solid particles, powders, colloids, frozen bodies, and foods such as cheese, sugar gum, butter, wheat lint, butter, fermented bodies, etc. Raw material inspection can be widely used in the food industry, transportation and highway engineering and other industrial sectors.
