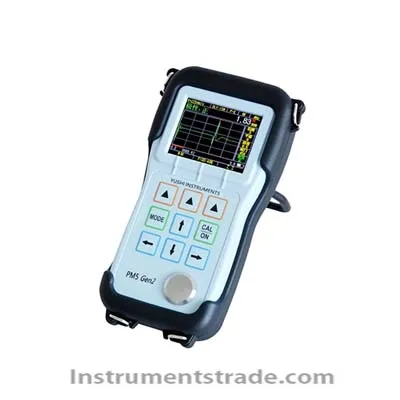

PM5 Gen2 Ultrasonic Thickness Gauge Introduction: The PM5 Gen2 thickness gauge is an advanced ultrasonic thickness gauge with multiple standard measurement functions and special function options. This portable thickness gauge uses single crystal probes of different frequencies and types to meet the needs of large logarithmic measurements. And the measurement range is wide, ranging from thin steel plates with a thickness of 0.15mm to long steel bars of tens of meters, and even thin paint layers of tens of micrometers, all of which can be measured. The fully functional PM5 Gen2 is an innovative instrument that integrates multiple solutions and can be used for almost all thickness measurement applications. characteristic: 1. Durable and sturdy, suitable for use in harsh environments The design of the PM5 Gen2 ultrasonic thickness gauge housing meets the IP67 dustproof and waterproof rating, completely sealed to prevent foreign objects and dust from entering, and can withstand being soaked in water at a depth of 1 meter for 30 minutes. It can withstand harsh environmental conditions such as extreme humidity or sandstorms. A rubber protective cover with a bracket can effectively protect the instrument and prevent damage in case of accidental drop. 2. Used in conjunction with multiple probes, it has a wide range of measurement applications PM5 Gen2 thickness measurement can be completed using single crystal probes of different frequencies and types for large logarithmic measurements. The frequency range of the probe is 0.5-20MHz. Can be paired with delay line probes, contact probes, protective film probes, high-temperature probes, etc. 3. Multiple measurement functions Powerful multiple measurement functions, like two instruments measuring simultaneously. It is possible to measure the thickness of both the substrate and coating materials simultaneously, or to measure the layered material thickness of composite materials simultaneously, with both thickness values displayed on the screen. 4. Thickness measurement of multi-layer materials The multi-layer measurement option can simultaneously measure the thickness of up to 5 layers of multi-layer paint, plastic, and other materials. Each layer can independently set measurement parameters based on material conditions, including measurement mode, material sound velocity, thickness range, gain, gate, and polarity, for easy observation and measurement. Technical parameters: Measurement mode: P-E (Pulse Echo Method): The time interval between the excitation pulse and the first bottom echo. I-E (Interface Wave Echo Method): The time interval between the delayed block echo and the first bottom echo. I-E-E (Echo Echo Method): The time interval between adjacent bottom echoes located after the first surface echo after the excitation pulse. I-ME (Multiple Echo Method): The time interval between multiple bottom echoes located after the first surface echo after the excitation pulse. E-EV (Double Echo Verification): To verify the echo pattern, three reflected echoes are required. COAT coating mode (option): Coating specific measurement mode. Probe types: Supports delay line probes, contact probes, protective film probes, pen probes, and immersion probes. Calibration methods: zero calibration probe, zero calibration coating, calibration sound speed, one point calibration, two-point calibration, set sound speed, material sound speed meter. Measurement range: 0.01 millimeters to 38 meters, depending on the tested material, probe, surface conditions, temperature, and selected software configuration. 0.15mm~30mm (standard probe) Range of material sound velocity: 310 - 18699m/s， And it can also measure the sound velocity of objects with known thickness. Resolution: Low Resolution: 0.1 millimeters Standard resolution: 0.01 millimeters High resolution: 0.001 millimeters Ultra high resolution (option): 0.0001mm or 0.1um (I-ME mode) Probe frequency range: 0.5MHz～20 MHz Working languages: Chinese and English are available for selection. Measurement units: millimeters, inches, micrometers, and mils. Measurement update rate: 4HZ, 8HZ, 16HZ optional. Instrument shutdown: It can be automatically shut down after 5, 10, or 20 minutes of inactivity, or it can only be manually shut down. Temperature range: -10 ℃ to 50 ℃ Instrument casing: impact resistant, waterproof, and equipped with sealing gaskets, with sealed interfaces on the casing. Designed to comply with IP67 standards. Instrument size: 153mm × 76mm × 37mm (H × W × D) Weight: 280g including battery Working power supply: Two AA batteries, standby time greater than 24 hours. Display screen: 2.4-inch (320 × 240 dot matrix) TFT color display LCD screen. Rectification modes: RF, inverted RF, full wave, positive half wave, negative half wave. Viewing modes: A-scan, B-scan, numerical value, maximum value capture, difference value.
Introduction: The PM5 Gen2 thickness gauge is an advanced ultrasonic thickness gauge with multiple standard measurement functions and special function options. This portable thickness gauge uses single crystal probes of different frequencies and types to meet the needs of large logarithmic measurements. And the measurement range is wide, ranging from thin steel plates with a thickness of 0.15mm to long steel bars of tens of meters, and even thin paint layers of tens of micrometers, all of which can be measured. The fully functional PM5 Gen2 is an innovative instrument that integrates multiple solutions and can be used for almost all thickness measurement applications.
