- Model NumberPM-01XL
- Brand NameSHRSBFXJS
- Payment TermsT/T, paypal
Brief introduction:

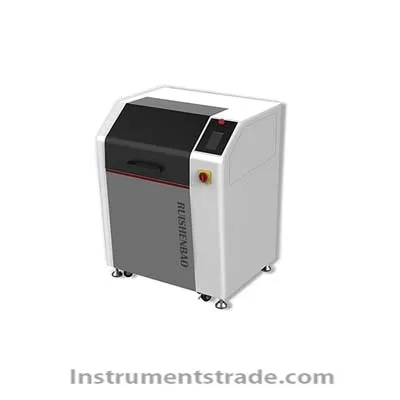

PM-01XL dry powder grinding machine is a new type of high-efficiency powder preparation equipment carefully developed by ruishen bao analytical technology (Shanghai) co., LTD., which can be widely used in food, steel, metallurgy, chemical, geological, cement, ceramic refractory materials and other industries. Its working mode is vibration grinding type, grinding kit and sample in high speed rotation, the pressure, impact force and friction force together to achieve efficient grinding samples. This machine has compact structure, simple operation, beautiful appearance and fast sample making speed. The abrasive box is designed with sealed structure, and there is no sample loss and dust pollution during grinding. Suitable for medium hardness, brittleness, fiber brittleness materials, can achieve fast, reproducible, no loss of grinding.
Advantages:
1. The color touch LCD screen integrating display, setting and operation is convenient, intuitive and easy to use.
2, perennial full power operation, reliable performance.
3, frequency control, can be customized with appropriate grinding speed, energy saving.
4, a variety of grinding box material and capacity is optional, widely adapt to different sample material grinding and sample size.
5. Abrasive tank is designed with sealing structure.
6. The equipment is equipped with dust pollution prevention device, polyethylene dust prevention pad and polypropylene anti-wear pad to prevent pollution
7, the use of a unique quiet noise reduction design, noise less than 60 decibels (the whole machine cover sound-absorbing material to reduce noise).
8. Positioning protection device for grinding tank; Automatic safety induction for opening cover of equipment; Automatic alarm for abnormal status of equipment; Emergency stop button; Prevent the wrong operation of the power switch, emergency power protection.
Technical parameters:
USES: crushing, mixing and homogenizing
Grinding tank fixed mode: use the pressure bar type safety positioning lock and anti-swing plate fixed base double protection
Material: hard, medium hard, brittle, brittle fiber
Principle of crushing action: high-energy hammer impact, the use of friction, shear force, extrusion force, impact force
Feeding size: 0-60mm
Discharge size: 1 m
Single grinding amount: 1500ml
Grinding time of single sample: 60 seconds
Vibration frequency: 0-1600 RPM, continuously adjustable
Grinding time: 0-59 minutes and 59 seconds (adjustable)
Control mode: color touch screen, programmable, and store grinding program, language interface: Chinese and English
Size of grinding box: volume 2000ML (one-time injection quantity 1500ml), stainless steel, super hard aluminum alloy is optional
Power supply: AC 220V single-phase 50Hz 3kW;
The section of the power supply wire shall not be less than 2.5mm2, and the ground wire shall not be less than 1mm2;
The power supply voltage fluctuation 10% or less, ground grounding resistance of 10 or less Ω;
Pay attention to the installation of protective ground wire.
Size (L * W * H) : 750 ╳ 650 ╳ 650 mm
Size: 1100 ╳ 1000 mm
Net weight: 280 kg
