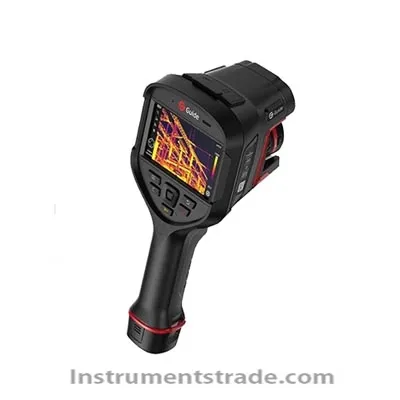

PL210 intelligent infrared thermal imager Introduction: This is a high-precision infrared thermal imager specially developed for the industrial field. It continues the classic "hammer" shape, with a self-developed high-sensitivity infrared detector and a maximum resolution of 640x480. It is paired with a 13 million visible light camera and 5 focus modes to help users intuitively view high-definition images and temperature details of the target. 30Hz infrared frame rate can quickly and accurately obtain more temperature data of moving targets, far exceeding products of the same level. characteristic: 1. Maximum 640x480 infrared resolution A new generation of self-developed infrared focal plane detector, with a maximum infrared resolution of 640x480, paired with super-resolution reconstruction for clearer image quality 2. IRGD frame rate 30Hz Infrared video of raw data, with a maximum frame rate of 30Hz, and the ability to take screenshots for temperature analysis at any time 3. Wide temperature measurement range and rich applicable scenarios The temperature range is -40~650 ℃, and with the installation of a high-temperature lens, it can reach up to 2000 ℃ 4. Real time presentation of intuitive temperature data Full infrared, visible light MIF、 Picture in picture four image modes, all of which can intuitively view the target temperature data and automatically display the full screen highest temperature, lowest temperature, and center point temperature 5. OTA online upgrade, frequently updated devices Connect the device to the network to achieve firmware upgrade Technical parameters: Image and Optics Detector type: uncooled vanadium oxide, 7.5~14μm Infrared resolution: 256 × 192@12 μm Super resolution technology: supported, upgraded to 512 × 384 NETD： 45mK Infrared frame rate: 30Hz/9Hz Focal length: 10.5mm Field of view angle: 25 °× 19 ° Spatial resolution: 1.70mrad Minimum imaging distance: 0.1m Distance coefficient ratio: 588:1 Focusing methods: manual/automatic/touch focus/continuous autofocus Digital scaling: 1.1x~8x analysis Temperature measurement range: supports automatic gear switching:- 40°C~150°C, 0°C~650°C Temperature measurement accuracy: ± 2 ° C or ± 2%, whichever is greater Analysis object: 5 temperature measurement points/lines/areas in total Temperature threshold alarm: supports image/voice/flash alarm Temperature measurement parameters: emissivity, reflection temperature, target distance, humidity, atmospheric temperature, optical transmittance, dew point
Introduction: This is a high-precision infrared thermal imager specially developed for the industrial field. It continues the classic "hammer" shape, with a self-developed high-sensitivity infrared detector and a maximum resolution of 640x480. It is paired with a 13 million visible light camera and 5 focus modes to help users intuitively view high-definition images and temperature details of the target. 30Hz infrared frame rate can quickly and accurately obtain more temperature data of moving targets, far exceeding products of the same level.
