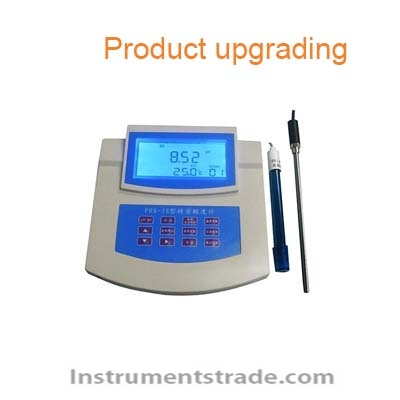

PHS-5E Precision pH Meter Introduction
PHS-5E Type Precision pH Meter is a high performance and high precision of intelligent multi-functional pH Meter, with the advantage of reliable stability and easy to use by adopting microcomputer control and large LCD. It is widely used in the measurement of laboratoril pH value, mV values and temperature in medical, chemical, pharmaceutical, sewage treatment, environment monitoring, industrial mining enterprises and universities, scientific research institutions. Features
1. The MCU control measurement process, using a digital filtering technology improve the system reliability.
2. Manual and automatic temperature compensation function, and the temperature digital compensation technology, eliminating the nonlinear factors of temperature compensation.
3. Two calibration point.
4. Can store 99 pH values.
5. With power failure protective function. Technical Parameters
1. Measurement Range: pH: 0~14 mV: 0 ~ ±1999.9mV T℃: 0~99.9℃
2. Distinguishability: pH: 0.01 pH mV: 0.1mV T℃: 0.1℃
3. Fundamental Error: pH: ±0.01 pH mV: ±0.1%(F.S) T℃: ±0.5℃
4. Input Impedance: ≥1×1012Ω
5. Temperature Compensation Range: (manual or automatic) 0 ~ 99.9℃
6. Electrode: E201-C plastic shell pH composite electrode and temperature electrode.
7. The Normal Use Environment:
(1) Environment Temperature: (0~40) ℃
(2) Relative Humidity: ≤85%
(3) Power Supply: AC 220V±22V, 50Hz
(4) No obvious vibration and electromagnetic interference.
8. Weight: 0.5 Kg
9. Dimensions: 206mm×180mm×72mm
Introduction
PHS-5E Type Precision pH Meter is a high performance and high precision of intelligent multi-functional pH Meter, with the advantage of reliable stability and easy to use by adopting microcomputer control and large LCD. It is widely used in the measurement of laboratoril pH value, mV values and temperature in medical, chemical, pharmaceutical, sewage treatment, environment monitoring, industrial mining enterprises and universities, scientific research institutions.
