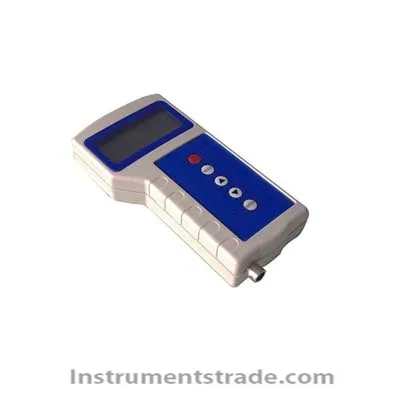

PHB-5 portable PH meter Introduction
The PHB-5 portable PH meter is a digital display pH meter that uses a blue backlit, dual-row digital display LCD that simultaneously displays pH, temperature, or potential (mV) values. The instrument is suitable for the measurement of the pH value and potential (mV) value of the aqueous solution in the laboratory of universities, research institutes, environmental monitoring, industrial and mining enterprises, etc., and the ORP electrode can measure the ORP (oxidation-reduction potential) value of the solution. The electrode potential value of the electrode can be measured by an ion selective electrode. Technical Parameters
Instrument level: 0.1 level
Measuring range: pH0.00~14.00pH; mV0～±1400mV
Resolution: 0.01pH, 1mV, 0.1 °C
Temperature compensation range: 0 ~ 60 ° C;
Basic error of the electronic unit: pH±0.05pH; mV±1% (FS)
Basic error of the instrument: ±0.1pH;
Electronic unit input current: no more than 1 × 10-11A
Electronic unit input impedance: not less than 3 × 10 11Ω
Electronic unit repeatability error: pH 0.05pH mV 5mV
Instrument repeatability error: no more than 0.05Ph
Electronic unit stability: ±0.05pH±1 word/3h
Dimensions: 220 × 160 × 65mm (l × b × h)
Weight: 0.3kg
Normal use condition
Ambient temperature: (5 ~ 50) °C
Relative humidity: ≤ 85%
Power supply: DC6V
No significant vibration
No external magnetic field interference except the earth's magnetic field
Introduction
The PHB-5 portable PH meter is a digital display pH meter that uses a blue backlit, dual-row digital display LCD that simultaneously displays pH, temperature, or potential (mV) values. The instrument is suitable for the measurement of the pH value and potential (mV) value of the aqueous solution in the laboratory of universities, research institutes, environmental monitoring, industrial and mining enterprises, etc., and the ORP electrode can measure the ORP (oxidation-reduction potential) value of the solution. The electrode potential value of the electrode can be measured by an ion selective electrode.
