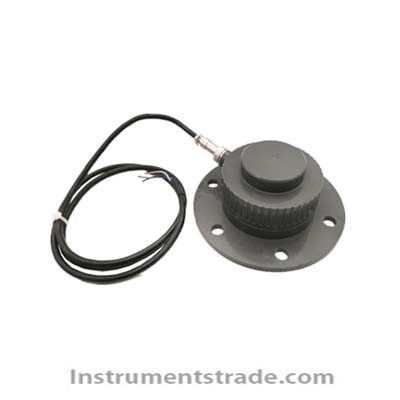

PCM80 Ultrasonic Distance Measuring Sensor Introduction: The PCM80 ultrasonic distance sensor uses acoustic media for non-contact and wear-resistant detection of the detected object. Ultrasonic sensors can detect both transparent and colored objects, metallic and non-metallic objects, as well as solid, liquid, or powdered substances. The surrounding environmental conditions, such as smoke, dust, or rain, will hardly affect the detection performance of ultrasonic sensors. The sensor adopts GX12 aviation plug-in line method, with a launch angle of about 6 °, suitable for narrow spaces. Flange installation can avoid resonance between the sensor and the metal bracket. characteristic: 1. High resolution 2. Short response time 3. Complete parameter settings through RS 485 4. Rich output methods: analog RS485 Technical parameters: Power supply: 10.8VDC~26.4VDC Measurement range: 250-3500mm Measurement accuracy: ± 30mm Resolution: 1mm Response time: 1 second Launch angle: 5.7 ° Environmental temperature:- 20℃～60℃ Protection level: IP67 Wire length: 2m (other wire lengths need to be customized)
Introduction: The PCM80 ultrasonic distance sensor uses acoustic media for non-contact and wear-resistant detection of the detected object. Ultrasonic sensors can detect both transparent and colored objects, metallic and non-metallic objects, as well as solid, liquid, or powdered substances. The surrounding environmental conditions, such as smoke, dust, or rain, will hardly affect the detection performance of ultrasonic sensors. The sensor adopts GX12 aviation plug-in line method, with a launch angle of about 6 °, suitable for narrow spaces. Flange installation can avoid resonance between the sensor and the metal bracket.
