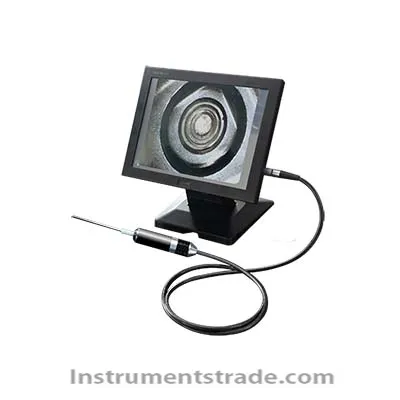

Introduction: The P60 series industrial endoscope is an endoscope that is specially designed for the characteristics of the casting and machining industries and is suitable for online inspection. Mainly check the corrosion, sand holes, cracks, burrs, foreign bodies, etc. inside the castings and machining. As the quality control of precision castings and processed parts is becoming stricter, the requirements are getting higher and higher, and the output is also increasing. Traditional conventional industrial endoscopes can no longer meet the testing requirements. Combining the product structure, actual complex working conditions and quality control requirements of the entire casting and machining industries, the P60 series industrial endoscopes have been carefully developed. Technical parameters: Menu language selection: Chinese, English, Russian and other eight languages are available Screen size: 12.1″ LCD Display resolution: 1024*768 Image recording file format: JPEG/AVI Picture resolution: 640*480 Contrast ratio: 400:1 Chipset: Intel® ATOM N2600 1.6GHz + NM10 Memory: 2GB DDR3 Manually control probe rotation: storage Operating system: Windows 7 Power consumption: 15W (standby state) 25W (rated power) System weight: 3.5 kg Power supply: 12V DC Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration Shock resistance: 10g acceleration, 11ms cycle IP protection level: IP65 (optional) Reliability: MTBF≥50000h; MTTR≤0.5h Working temperature: -10℃～50℃ @ 5 ~ 85% RH. Air flow Working humidity: 95% @40℃, non-condensing Storage temperature: -20℃～60℃ Material: Aluminum alloy panel fanless design Size: 288mm(length) *226mm(width) *60mm(height)
Introduction: The P60 series industrial endoscope is an endoscope that is specially designed for the characteristics of the casting and machining industries and is suitable for online inspection. Mainly check the corrosion, sand holes, cracks, burrs, foreign bodies, etc. inside the castings and machining. As the quality control of precision castings and processed parts is becoming stricter, the requirements are getting higher and higher, and the output is also increasing. Traditional conventional industrial endoscopes can no longer meet the testing requirements. Combining the product structure, actual complex working conditions and quality control requirements of the entire casting and machining industries, the P60 series industrial endoscopes have been carefully developed.
