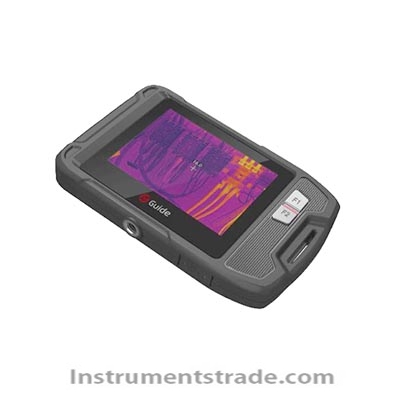

P120V pocket infrared thermal imager Introduction: P120V is a ready to use tool designed specifically for electrical equipment maintenance and building inspections, capable of quickly identifying hidden issues, recording repair data, and sharing images via Wi Fi. The compact and lightweight body can be easily placed in a pocket and taken out for use at any time. 3.5-inch LCD touch screen, simple and easy to use, and supports multiple functions such as infinite zoom, high and low temperature alarm, cloud album, etc. characteristic: 1. Wide temperature range of -20-400 ℃ -20 ℃ -150 ℃, 100 ℃ -400 ℃, with automatic switching between the two levels 2. Reasonable layout of functional areas The lens area and grip area are distributed on both sides without interfering with each other 3. 3.5-inch touch screen LCD high brightness screen with a resolution of 320 * 240, large screen for more intuitive observation 4. Android platform, intelligent operation Developed on the Android system, it is as simple and convenient as using a smartphone 5. Mobile Internet, supporting cloud services You can log in to the cloud album through PC software or local machine, remotely analyze or share pictures Technical parameters: Detector type: uncooled vanadium oxide, 7.5~14μm Infrared resolution: 120 × 90@17 μm NETD：60mK Infrared frame rate: 15Hz/9Hz Focal length: 2.28mm Field of view angle: 50 °× 38 ° Spatial resolution: 7.46mrad Minimum imaging distance: 0.5m Distance coefficient ratio: 130:1 Focusing method: no focusing required Digital scaling: 1.1x~8x Temperature measurement range: supports automatic gear switching:- 20°C~150°C, 100°C~400°C Temperature measurement accuracy: ± 2 ° C or ± 2%, whichever is greater Analysis object: 1 temperature measurement point, 1 temperature measurement area Temperature threshold alarm: supports image alarm Temperature measurement parameters: emissivity, reflection temperature, target distance Display screen: 3.5-inch LCD touch screen Image mode: IR, VIS, MIF, PIP Palette: 6: White Heat, Black Heat, Iron Red, Hot Iron, Medical, Arctic Image adjustment: Level Span mode: automatic, semi-automatic, manual Digital camera: 640 × 480 Battery type: Built in rechargeable lithium battery Battery working time: 2 hours Charging method: TYPE-C direct charging; Supports PC/power bank charging; Support charging while using Charging time: 1.5 hours to fully charge 90% of the battery Working temperature:- 10°C~50°C Protection level: IP54 Drop: 1m drop Certification: CE, FCC, RoHS, KCC, IP54, 1m drop/humidity/vibration/collision/impact testing, UN38.3/MSDS/Air Sea Battery Certification Hardware module: Lighting fixtures Weight: 240g Size: 133 × 87 × 24mm
Introduction: P120V is a ready to use tool designed specifically for electrical equipment maintenance and building inspections, capable of quickly identifying hidden issues, recording repair data, and sharing images via Wi Fi. The compact and lightweight body can be easily placed in a pocket and taken out for use at any time. 3.5-inch LCD touch screen, simple and easy to use, and supports multiple functions such as infinite zoom, high and low temperature alarm, cloud album, etc.
