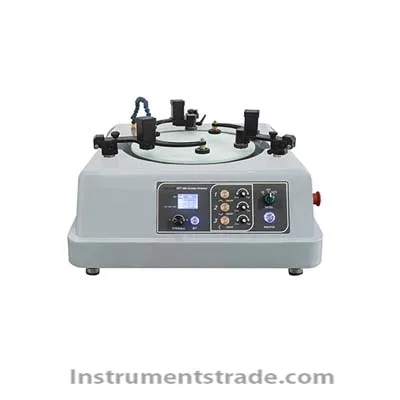

OPT-380 automatic precision grinding and polishing machine Introduction: The OPT-380 automatic precision grinding and polishing machine has strong comprehensive performance in the industry, mainly used for grinding and polishing samples of metals, ceramics, glass, PCB boards, optical materials (such as zinc sulfide, silicon and other crystals), refractory materials, composite materials and other materials. It is one of the ideal grinding and polishing equipment for scientific research and production experiments. The grinding and polishing disc with a diameter of 381mm on this machine can be used for grinding and polishing circular discs with a diameter of ≤ 142mm or rectangular planes with a diagonal length of ≤ 142mm. characteristic (1) The swing arm can be quickly disassembled and assembled, making it easy to replace the grinding disc; (2) The grinding spindle rotation adopts a stepless speed control method and is equipped with a digital display to display the speed in real time. The spindle adopts angular contact bearings instead of ball bearings, which have a longer service life; (3) There is a timing function that can accurately control the working time (between 0-999H); (4) Equipped with a cooling system, it can ensure long-term low-speed operation; (5) The control panel has a 2.4-inch LCD screen, with a simple interface and easy operation. Technical parameters: 1. Model: OPT-380 2. Work disk Speed: 10-200rpm Working disk diameter: Φ 381mm Workstation: Three workstations 3. Grinding ability Sample size: diameter<Φ 142mm Flatness: less than 0.002mm per 20mm x 20mm 4. Electrical Voltage/Frequency: 220V/50Hz Rated power: 800W Standby power: 15W Timing time: 0-999 hours 59 minutes 59 seconds 5. Water supply Maximum pressure: 0.6MPa Inlet pipe diameter: Φ 8mm Outer diameter of outlet pipe: Φ 32mm 6. Operating environment Temperature: -20 ° C -60 ° C Humidity: 0-95% RH 7. Dimensions W × D × H: 653x771x338mm 8. Weight: 150kg
Introduction: The OPT-380 automatic precision grinding and polishing machine has strong comprehensive performance in the industry, mainly used for grinding and polishing samples of metals, ceramics, glass, PCB boards, optical materials (such as zinc sulfide, silicon and other crystals), refractory materials, composite materials and other materials. It is one of the ideal grinding and polishing equipment for scientific research and production experiments. The grinding and polishing disc with a diameter of 381mm on this machine can be used for grinding and polishing circular discs with a diameter of ≤ 142mm or rectangular planes with a diagonal length of ≤ 142mm.
