Summary:

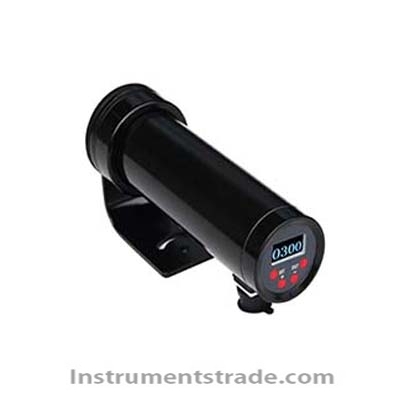

Aluminum has good thermal conductivity, low radiation rate, and easy surface temperature distribution. Generally, the appearance is relatively bright, and the temperature is relatively low. Therefore, it is difficult to measure the aluminum temperature accurately and stably by the traditional infrared thermometer of radiation energy. OI-T60AL2 aluminum special type thermometer, adopts special wavelength detector and customized optical fiber, USES optical fiber sensor technology to capture the characteristic wave length radiated by aluminum, and transforms the weak signal emitted by aluminum into a stable strong signal by establishing the space weak waveguide to achieve high-speed, high-sensitivity and high-stability temperature measurement. Features:
With a special wavelength detector and custom optical fiber, it is better suited to measure the temperature of non-ferrous metals such as aluminum, using fiber sensor feature wave capture technology.
With OLED display, temperature display, adjustment process coefficient.
Temperature measurement has high accuracy and good stability.
It can rapidly determine the surface temperature of aluminum before temperature distribution.
Is coaxial laser aiming to facilitate accurate targeting of the point being measured.
To be able to install stainless steel water cooling jacket/air cooling jacket, protective equipment in the high-temperature environment normal operation.
Is elegant appearance, compact structure, convenient and easy to use. Main technical parameters:
Temperature range: 300 ~ 800 ℃;
Basic error: 0.5% (upper limit of range);
Measurement distance: 0.2 ~ 3 (m);
Measurement target: greater than or equal to 2mm;
Response time: 20ms;
Analog output: 4 ~ 20mA;
Aiming mode: coaxial laser
Digital output: RS485, Modbus protocol;
Power supply: 24V DC plus or minus 20%, current greater than or equal to 60mA;
Working environment: the environment temperature - 10 ℃ to 50 ℃;
The relative humidity was 10% ~ 90% without condensation.
Atmospheric pressure 86KPa ~ 108 KPa; Main application areas:
Temperature measurement of aluminum extruded profile and aluminum bar
Temperature measurement of aluminum continuous casting and rolling, aluminum billet and aluminum bar
Is aluminum alloy wheel hub heat treatment temperature measurement
Aluminum welding, aluminum injection molding temperature measurement
Temperature measurement for aluminum rolling process
Aluminium temperature measurement
