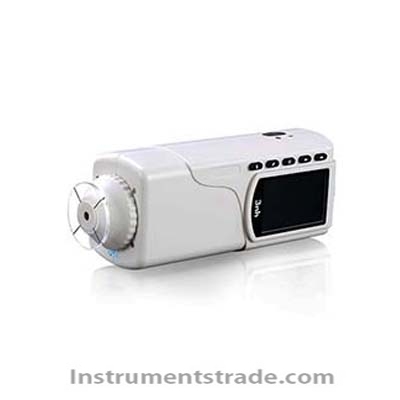

NR10QC universal color difference meter Introduction
NR10QC color difference meter is a precision color difference detection instrument developed and produced according to the relevant standards and national standards of CIE (International Commission on Illumination). The color difference meter adopts new imported key components and has been carefully designed to be precise and stable, easy to operate, easy to learn and understand, and economical.
NR10QC color difference meter is suitable for color quality control and color difference detection in textile, printing and dyeing, clothing, footwear, leather, chemical, plastic, plastic, pigment, paint, ink, printing, hardware, photography, toys, food, medicine and other industries. Features
1. Economical and easy to operate;
2. Higher short-term repeatability accuracy: ΔE≤0.03;
3, light and cross double positioning function;
4. Configure a rechargeable lithium ion battery;
5, Φ4mm measuring caliber, portable structure, suitable for more measurement occasions;
6, color box packaging, convenient transportation;
7, built-in whiteboard parameters, no need to perform black and white board correction;
8, no need to connect to the computer to use - make measurement easier! Technical Parameters
Measuring geometry: 8°/d
Measuring aperture: Φ4mm
Positioning method: Light positioning and cross positioning
Detection Sensor: Silicon Photodiode Array
Light source device: LED blue light excitation
Repeatability: ≤0.03ΔE*ab Measure 30 times average of white standard plate
Difference between instruments: ≤0.20ΔE*ab
Optional light source: D65
Charging time: about 8 hours = 100% power
Number of measurements after charging: Measure 5000-8000 times
Lamp life: 5 years More than 1.6 million measurements
Color space: CIE L*a*b*
Color difference formula: ΔE*ab
Operating temperature and humidity range: -10-40 ° C, 0 ~ 85% relative humidity (no condensation)
Storage temperature and humidity range: -20-50 ° C, 0~85% relative humidity (no condensation)
Whiteboard parameters: Built-in whiteboard parameters - making measurements simpler
Packing: color box packaging
Printer (optional): Micro thermal printer Powder test box
Weight: 500g
Size: 205 × 70 × 100mm
Power: Rechargeable lithium-ion battery 3.7V@3200mAh
Storage: 100 standards 10000 samples
