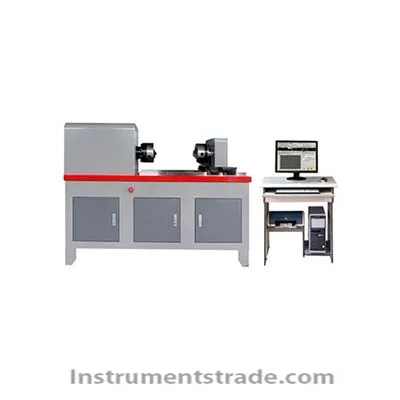

Introduction: Torsion testing machine for metal materials, non-metallic materials, composite materials and components of the torsion performance test. According to the national standard "GB / T10128-1998 metal torsion test method for testing" and provide data. Mainly applicable to the measurement of quality inspection; metallurgical steel; machinery manufacturing; civil aviation; institutions of higher learning; research laboratories; commodity inspection arbitration, technical supervision departments; building materials ceramics; petrochemical industry; other industries mechanics laboratory. Torsion testing machine for metal materials is loaded with AC servo control motor, high-precision torque sensor detects torque, photoelectric encoder detects the rotation angle, the computer shows the test results, high rigidity and high precision high-load linear guide rail, which provides a reliable Guarantee. Based on the database model of computer control software, with a good man-machine interface, easy to understand and so on. Features: 1, the controller sampling frequency can be adjusted as needed, the material yield phase can be high-speed sampling; 2, the software sub-senior managers, managers and operators three levels of management, different managers have different authorities; 3, the main test operation, control functions, test curves, real-time display and so appear in the first main interface, intuitive observation, easy to operate, the test process can dynamically display real-time torque - torsion angle, torque - angle, torque - time , Twist - time, corner - time curve; 4, the software can calculate and handle the standard performance of the twisting performance: shear modulus G, provides non-proportional torsional strength τP0.015 and τP0.3, on the torsional yield strength τSu torsion yield strength τSl, torsional strength τb, the maximum non Ratio of shear strain γmax. And so on; 5, can be positive and negative, the test ends, you can manually or automatically return to the initial high-speed test position. Technical Parameters: Model NJ-W1000 Maximum torque (Nm) 1000 Tester accurate grade level 1 Torque measurement range (Nm) 20-1000 Torque indication relative error ± 1% Torque resolution (Nm) 0.1 Tilting angle minimum reading value (°) 0.01 Torsion angle maximum reading (°) 9999.9 Angle measurement error ± 1% Effective test space (mm) 0-500 can be customized Host size (mm) 1650 × 530 × 900 Power 220V ± 10%, single phase, 50Hz Host weight (kg) 600
Introduction: Torsion testing machine for metal materials, non-metallic materials, composite materials and components of the torsion performance test. According to the national standard "GB / T10128-1998 metal torsion test method for testing" and provide data. Mainly applicable to the measurement of quality inspection; metallurgical steel; machinery manufacturing; civil aviation; institutions of higher learning; research laboratories; commodity inspection arbitration, technical supervision departments; building materials ceramics; petrochemical industry; other industries mechanics laboratory. Torsion testing machine for metal materials is loaded with AC servo control motor, high-precision torque sensor detects torque, photoelectric encoder detects the rotation angle, the computer shows the test results, high rigidity and high precision high-load linear guide rail, which provides a reliable Guarantee. Based on the database model of computer control software, with a good man-machine interface, easy to understand and so on.
