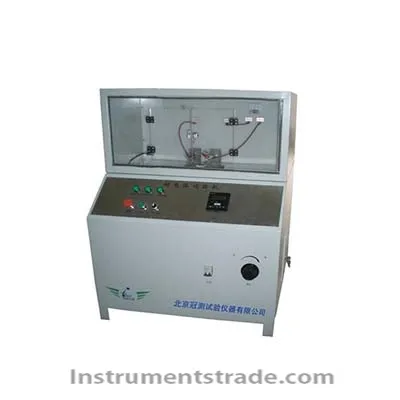

Introduction: The testing machine is used in electrical, electrical and household appliances and other electrical industry plastic, resin glue and insulating paint insulation arc resistance evaluation, the main application of solid insulation materials such as: plastic, film, resin, mica, Ceramic, glass, insulating oil, insulating paint, cardboard and other media arc resistance test; The test machine controlled by the computer operation, you can display the current state of the experimental and experimental time, after the end of the experiment and save the current experimental data, and can print standard test report. Features: 1 The machine is up and down the structure, the lower part of the operating system, the upper part of the test chamber. 2 This product incorporates the latest intelligent control technology and can be automatically tested by a selection program (IEC or ASTM) and displayed on the computer for the duration of the test and the results. 3 good safety performance, anti-interference ability, high test accuracy. Technical Parameters: 1 Arc on-off error: less than ± 10ms 2 regulator capacity: 2kVA 3 Rated test voltage: 12.5kV 4 test voltage accuracy: ± 3% 5 Current control accuracy: ± 10% Current measurement accuracy: 1.5% 6 electrode pair sample pressure: (0.5 ± 0.05) N 7 electrode material: tungsten rod 8 Electrode distance: (6.35 ± 0.1) mm (IEC) (6.0 ± 0.1) mm (ASTM) 9 Ambient temperature: (23 ± 2) ℃ 10 Use of the environment Humidity: (50 ± 5)% 11 Power: 220V ± 5% 50Hz 10A 12 Test Method: GB / American Standard / 10 mA continuous / 20 mA continuous / 30 mA continuous / 40 mA continuous
Introduction: The testing machine is used in electrical, electrical and household appliances and other electrical industry plastic, resin glue and insulating paint insulation arc resistance evaluation, the main application of solid insulation materials such as: plastic, film, resin, mica, Ceramic, glass, insulating oil, insulating paint, cardboard and other media arc resistance test; The test machine controlled by the computer operation, you can display the current state of the experimental and experimental time, after the end of the experiment and save the current experimental data, and can print standard test report.
