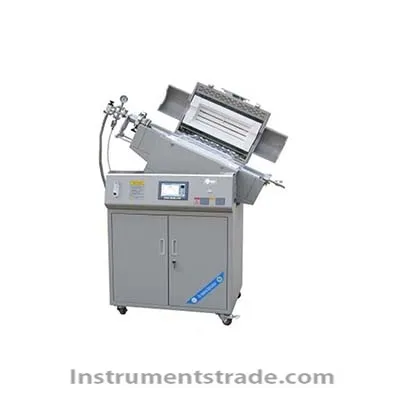

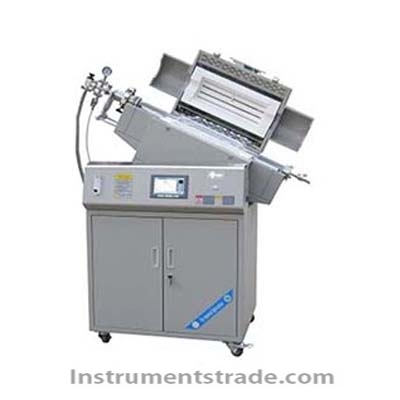

NBD-RT1200-100IT medium vacuum atmosphere rotary sintering furnace
Introduction: Rotating high temperature furnace for positive and negative materials of lithium ion battery (iron aluminum phosphate, lithium manganate, lithium cobalt oxide, ternary, graphite negative electrode, etc.), rare earth materials, magnetic materials, powder metallurgy materials, non-ferrous materials and kaolin non-metallic minerals Laboratory calcination and drying of powders of materials. The user can protect the atmosphere according to the material firing process. Features: 1. The material is fired evenly, the material is dynamically turned in the furnace, and the heat is evenly distributed to achieve sufficient reaction of the material; 2. The heating efficiency is high, and the material movement increases the heating surface; 3. Perfect automation control improves the operability of the system; 4. Excellent dynamic sealing system 5. The product adopts fully automatic control mode, touch screen and digital display. Technical Parameters: Model: NBD-RT1200-100IT Tilt angle: -5 to +35 Speed (Min): 2~8 turns Pipe diameter (outer) mm: Φ100 Furnace tube material: high purity quartz Number of temperature zones: 1 Heating zone length mm: 400 Maximum temperature: 1100 ° C Dimensions mm length * height * depth: 1245 * 1230 * 720 Power: AC220V4kw Weight Kg (about): 180
Introduction: Rotating high temperature furnace for positive and negative materials of lithium ion battery (iron aluminum phosphate, lithium manganate, lithium cobalt oxide, ternary, graphite negative electrode, etc.), rare earth materials, magnetic materials, powder metallurgy materials, non-ferrous materials and kaolin non-metallic minerals Laboratory calcination and drying of powders of materials. The user can protect the atmosphere according to the material firing process.
