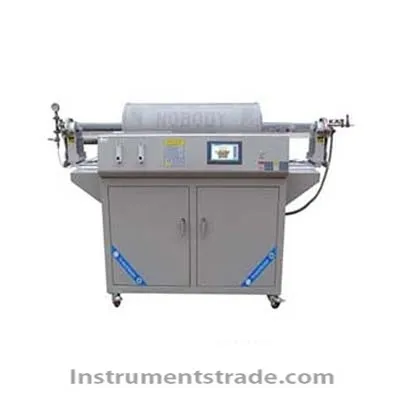

NBD-CMT1200 furnace mobile sliding furnace Introduction: This equipment is mainly used in the field of rapid temperature rise and fall. The furnace can be automatically moved left and right according to the setting requirements, and the moving speed can be manually adjusted. The furnace is heated to the set temperature on one side and then directly moved to the other side of the sample heating zone to achieve rapid temperature rise, the speed can reach 140 ° C / min, after the sintering is completed, the furnace is removed from the sample heating zone to achieve rapid cooling, 300 ° C ~ 1200 °C can reach 200~50 °C/min cooling rate. The furnace is automatically moved to the left and right to complete the rapid temperature rise test of the material! Technical Parameters: Model: NBD-CMT1200-□IT Maximum temperature: 1200 ° C Dimensions mm (length * height * depth): 1120 * 640 * 520 Pipe diameter (outer) mm: Φ60, Φ80 Tube length mm: 1000 Heating zone length mm: 200 Constant temperature zone ± 1 ° C length mm: 100 Power: AC220V 2.5kw Weight Kg (approx): 40
Introduction: This equipment is mainly used in the field of rapid temperature rise and fall. The furnace can be automatically moved left and right according to the setting requirements, and the moving speed can be manually adjusted. The furnace is heated to the set temperature on one side and then directly moved to the other side of the sample heating zone to achieve rapid temperature rise, the speed can reach 140 ° C / min, after the sintering is completed, the furnace is removed from the sample heating zone to achieve rapid cooling, 300 ° C ~ 1200 °C can reach 200~50 °C/min cooling rate. The furnace is automatically moved to the left and right to complete the rapid temperature rise test of the material!
