NanoBio 200 Ultra Micro Spectrophotometer for Protein monitoring

Product ID：FGfg086

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberNanoBio 200

Brand NameAOPUTIANCHENG

Payment TermsT/T,paypal

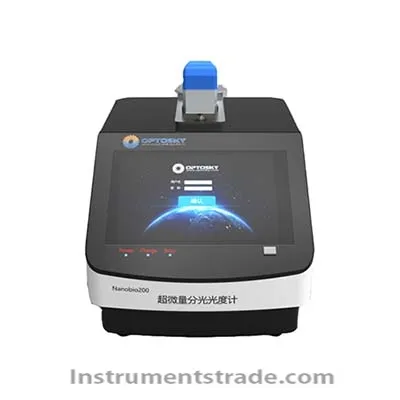

NanoBio 200 Ultra Micro Spectrophotometer

Introduction:
NanoBio 200 is a full-wavelength (190 ~ 1000 nm) ultra-micro spectrophotometer developed by our company. It is based on the company's more than 20 years of experience in the development of spectrometers, using self-produced high-performance optical fiber spectrometers and Japanese Hamamatsu The high stability pulsed xenon lamp can quickly and accurately detect nucleic acids, proteins and cell solutions. At the same time, it is easy to use, consumes less samples (only 0.5 ~ 2 μl), does not require preheating, can quickly clean up residual samples, does not require cuvettes or other sample positioning devices, and samples do not need to be diluted.
NanoBio 200 ultra-micro spectrophotometer is very easy to use. When testing, you can directly use a pipette to place the sample on the measuring probe and close the cover to perform the measurement; after the measurement, the sample can be directly wiped off or recycled sample. NanoBio 200 has become a standing instrument in many laboratories.
NanoBio 200 ultra-micro nucleic acid analyzer is a micro-ultraviolet spectrophotometer mainly used to detect nucleic acids and proteins. It uses a high-energy pulsed xenon light source to provide 230nm, 260nm and 280nm spectral detection.
NanoBio 200 is based on the Android operating system and comes with a 7-inch capacitive touch screen. It does not need a computer connection and can be tested in a single machine. The test data can be printed or output via USB, which is convenient for users to analyze and store.
Features:
1. Detection of nucleic acid, protein and cell solution
2. Only 0.5-2 μl sample is required for each test
3. Fast detection: <3s
4. Wide spectral range: 190-1000nm;
5. Full touch screen operation, convenient and quick;
6.7’’ HD capacitive touch screen;
7. Long life light source, up to 10 years
8. Built-in high-performance optical fiber spectrometer
9. High stability pulsed xenon light source
10. Advanced calculation algorithm;
11. User self-modeling function;
12. USB data output function;
Technical parameter:

Sample Size	0.5 - 2.0 μL
Measurement Cycle	~ 3 seconds
Optic Path Length	1.0 mm
Wavelength Range	190 ~1000 nm
Light Source	Xenon flash lamp
Detector Type	2048 pixel linear CCD array
Wavelength Accuracy	1 nm
Wavelength Resolution	≤ 2 nm (FWHM at Hg 546 nm)
Absorbance Precision	0.003 Abs
Absorbance Accuracy	1% (7.332 Abs at 260 nm)
Detection Limit	2 ng/μL (dsDNA)
Max Concentration	15,000 ng/μL (dsDNA)
Absorbance Range	0.04 ~ 300 (10 mm)
DNA range	2 ~ 4500ng/ul (dsDNA)
Surface Construction	303 stainless steel and quartz fiber
Operation System	Android OS
Panel Type	Capacity Touch Panel
Panel Size	7’’
Panel Resolution	1920 X 1080
Endurance Time	6 hrs
Li-ion Battery	55 Wh
Operating Voltage	12V DC
Power Consumption	9 W
Standby Power	3 W
Dimensions	290 X 210 X 220 mm
Weight	3.6kg
