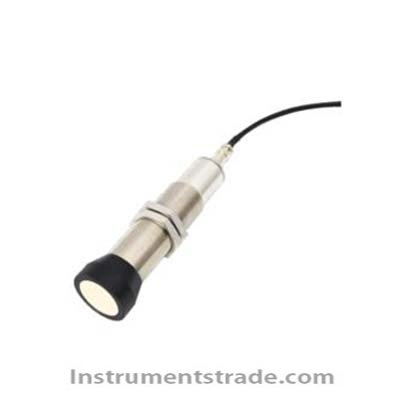

N2021-13M30 Ultrasonic Distance Measuring Sensor Introduction: The stainless steel casing of N2021-13M30 ultrasonic ranging sensor can effectively avoid on-site magnetic field interference; LED signal indication; Aviation plug connector, easy to install. Technical parameters: Power supply: 10-30VDC Measurement range: 200-3500mm Measurement accuracy: ± 3cm Transformer frequency: 70kHz Repetition accuracy: ± 0.25% Accuracy: ± 0.5% Resolution: 1mm Launch angle: 7.2 ° Environmental temperature:- 20℃～60℃ Power on response delay:< 350ms Protection level: IP66 Wire length: 2m (other wire lengths need to be customized) Green power indicator light, yellow working indicator light Weight: Approximately 300g
Introduction: The stainless steel casing of N2021-13M30 ultrasonic ranging sensor can effectively avoid on-site magnetic field interference; LED signal indication; Aviation plug connector, easy to install.
