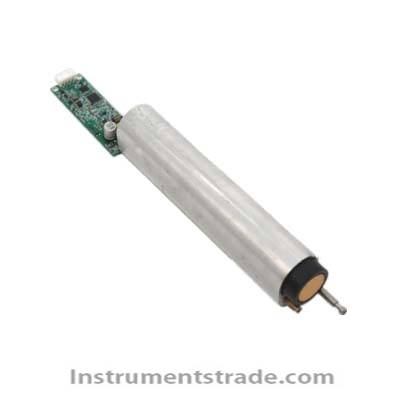

N2021-06 with benchmark distance sensor Introduction: Ultrasonic sensor ULSP series, with a range of 2.5m and a shell shape of Φ 30mm. GM represents that the shell material is mainly metal, and RS485 communication (Modbus RTU) is used. Used for distance measurement in the air, it can also be used for measuring water levels using benchmark distance measurement method in measuring rods, which can reduce fluctuations caused by the environment Product selection: Product Category: UL Ultrasonic Sensor Product series SP: with benchmark Detection range 250:2500mm Shell shape M30: Φ30mm ； FX: Customized appearance Shell material GK: plastic; GM: Metal Communication method C8: RS485 Technical parameters: Power supply: 10.8VDC~26VDC Blind spot: ≤ 40cm (benchmark distance measurement) (distance blind spot ≤ 10cm) Measurement accuracy: ± 0.5% (maximum range) Communication: Modbus RS485 standard protocol Range: 2.5m Environmental temperature:- 20℃～60℃ Protection level: IP68 Probe cable: 4-core shielded cable
Introduction: Ultrasonic sensor ULSP series, with a range of 2.5m and a shell shape of Φ 30mm. GM represents that the shell material is mainly metal, and RS485 communication (Modbus RTU) is used. Used for distance measurement in the air, it can also be used for measuring water levels using benchmark distance measurement method in measuring rods, which can reduce fluctuations caused by the environment
