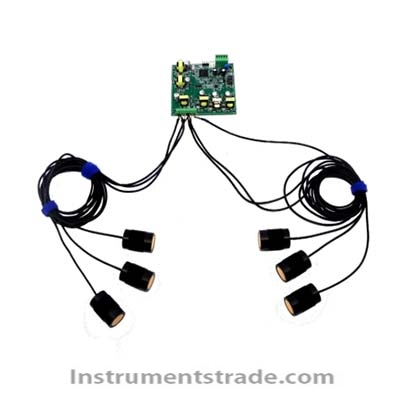

N2021-05 Ultrasonic Six Channel Distance Measuring Sensor Introduction: The N2021-05 ultrasonic six channel ranging sensor circuit board is separated from the probe and can perform ranging in six directions. Product selection: Product Category: UL: ultrasonic sensor Product series: ML: Multi channel distance measurement Measurement channel: 5C: 5-way measurement; 6C: 6-way measurement; 8C: 8-way measurement; 10C: Measurement of 10 channels Detection range: 500:5000mm; 15m:15m; 20m:20m; other Shell appearance: FX: Shell shape Communication method: C8:RS485 Technical parameters: Power supply: 10.8VDC~26VDC Blind spot: The blind spot varies depending on the probe Communication: ModBus-RS485 standard protocol Range: Different probes have different ranges Environmental temperature:- 20℃~60℃ Probe cable: 7-core shielded cable Installation: Separate installation, with the probe and circuit board installed separately. Circuit board size: S100H30: 100mm × 100mm × 30mm
Introduction: The N2021-05 ultrasonic six channel ranging sensor circuit board is separated from the probe and can perform ranging in six directions.
