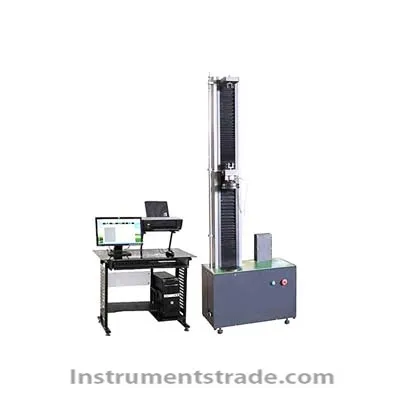

Introduction: The design of cable tensile testing machine draws on advanced technology from abroad, with beautiful appearance, convenient operation and stable and reliable performance. Through the controller, the computer system controls the rotation of the servo motor through the speed control system. After deceleration by the deceleration system, the moving cross beam is driven by the precision screw to increase or decrease. The tensile, compression, bending, shearing and other mechanical properties of the sample are completed. Test, no pollution, low noise, high efficiency, with a very wide speed range and beam travel distance, in addition to a wide variety of test attachments, in the test of mechanical properties of metal, non-metal, composite materials and products, has a very Broad application prospects. Features: 1. Adopt servo speed control system and servo motor to drive high-efficiency reducer and precision screw pair to test, achieve a wide range of test speed adjustment, complete the tensile, compression, bending, bending test of metal and non-metallic materials , can automatically determine the material's tensile strength, bending strength, yield strength, elongation, elastic modulus and peel strength, and can automatically print: force - time, force - displacement curve and test results reported. 2. Computer closed-loop control, automatic storage of test results, test results can be arbitrary access, simulation reproduction at any time. 3, the use of brand computers and equipped with special software for Windows electronic universal testing machine, according to national standards or user-supplied standards to measure the performance parameters of materials, statistics and processing of test data, output printing of various requirements of the test curve and test report: Selective stress-strain, load-strain, load-time, load-displacement, displacement-time, deformation-time, etc. can be used to display, amplify, compare and monitor, intelligent and convenient the test process. Technical Parameters: Maximum test force: 200N Test Machine Accuracy: Level 1 Test force measurement range: 2%-100% Test force accuracy: better than ± 1% Displacement resolution: 0.01mm Displacement measurement accuracy: better than ±1% Test speed range: 1-500mm/min Stretching space: 1000mm Compression space: 1000mm Host size: 450*270*1800mm Host weight: 150Kg Appearance conforms to: GB/T2611 requirements Power supply: 220V, 50Hz
Introduction: The design of cable tensile testing machine draws on advanced technology from abroad, with beautiful appearance, convenient operation and stable and reliable performance. Through the controller, the computer system controls the rotation of the servo motor through the speed control system. After deceleration by the deceleration system, the moving cross beam is driven by the precision screw to increase or decrease. The tensile, compression, bending, shearing and other mechanical properties of the sample are completed. Test, no pollution, low noise, high efficiency, with a very wide speed range and beam travel distance, in addition to a wide variety of test attachments, in the test of mechanical properties of metal, non-metal, composite materials and products, has a very Broad application prospects.
