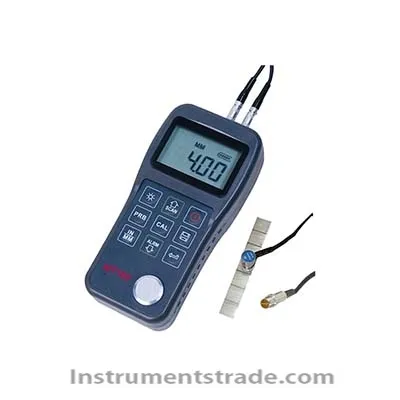

Introduction MT160 instrument is a smart ultrasonic thickness , using the latest high-performance , low-power microprocessor technology, based on the ultrasonic measuring principle, can measure a variety of metals and other materials, thickness , and can measure the speed of sound material . Production equipment can be a variety of pipes and pressure vessels for thickness measurement , monitoring them in the course of the degree of corrosion thinning can also be a variety of sheet metal and machined parts for accurate measurement . The instrument can be widely used in petroleum , chemical, metallurgy , shipbuilding, aviation, aerospace and other fields. Technical parameters Display method: high contrast Segment LCD display, high brightness EL backlight ; Measuring range : 0.75 ~ 300mm ( steel ) , metric and imperial option ; Velocity Range : 1000 ~ 9999 m / s: Resolution : 0.1mm / 0.01mm Indication accuracy : ± (0.5% H +0.04) mm H is the actual thickness of the measured object Measuring cycle: single-point measurement four times / sec, scan mode 10 times / sec ; Storage capacity : can store 20 groups ( groups of up to 99 measured values ) thickness measurement data. Operating voltage : 3V (2 AA-size alkaline batteries in series ) Continuous working time: about 100 hours ( without backlight ) Dimensions : 150 × 74 × 32 mm Weight : 245g
Introduction MT160 instrument is a smart ultrasonic thickness , using the latest high-performance , low-power microprocessor technology, based on the ultrasonic measuring principle, can measure a variety of metals and other materials, thickness , and can measure the speed of sound material .
