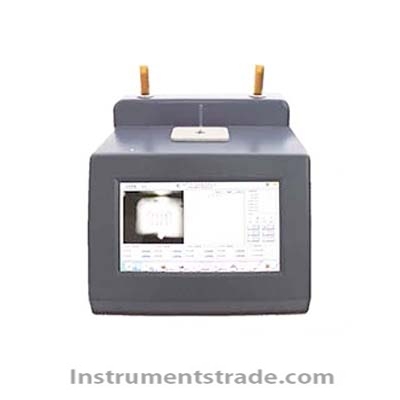

MPT--V1 automatic video melting point tester

Product ID：WLrod022

Price: Please inquire PDF Format

Supply Ability:50 SETS/MONTH

Port:SHENZHEN

Product Introduction
Consulting

Model NumberMPT--V1

Brand NameSHYK

Payment TermsT/T, paypal

Introduction:
The fully automatic video melting point tester is an indispensable testing device in the food, pharmaceutical and chemical industries for testing the melting points of drugs, reagents, fragrances, dyes and other organic crystalline substances.
The MPT series melting point instrument adopts high-definition video shooting technology to directly and clearly display the image of the sample melting process while temperature-controlled heating, and automatically collects the corresponding images of the initial melting and final melting.
Comply with each pharmacopoeial test method.
Features:
1. Built-in 10.8-inch industrial touch computer with its own analysis software.
2. Built-in 2 million to 5 megapixel HD camera to capture the sample melt process video in real time.
3. Four samples can be measured simultaneously.
4. The back end of the instrument is equipped with four USB ports and one WIFI network interface, which is convenient for users to connect external devices such as mouse, keyboard, laser printer, U disk, etc., which is convenient for users.
5. Linear heating rate 0.1 ° C -30.0 ° C infinitely adjustable.
6. Streamlined heat exhaust duct design, rapid cooling and cooling, improve sample testing efficiency.
7. It comes with 30G storage space, saves test curves and videos, and supports external memory expansion to save space.
8. Powerful database management function, product test data classification management, automatic correlation of initial melting, final melting test pictures.
9. At the time of shipment, the temperature coefficient is corrected by standard samples. Customers can use it directly.
10. The software supports functions such as audit trail, electronic signature, user hierarchical management, and free assignment of rights. It also supports traceability and traceability to export traceability events.
11. Comply with each pharmacopoeial test method.
Technical Parameters:

model	MPT-V1
Detection method	Manual test
Temperature resolution	0.1 ° C
Heating range	Room temperature -420 ° C
Accuracy	±0.2°C (room temperature -150°C) ±0.3°C (150°C-420°C)
Repeatability	±0.15 ° C (temperature up rate is 0.2 ° C / Min)
Temperature correction	Configure standard samples to correct device temperature
Heating rate	0.1°C-30°C/min
Number of samples	Capillary method: 4 / time
Capillary size	Inner diameter 1mm, wall thickness 0.1mm-0.15mm
HD camera	2 million to 5 million pixels (standard 2 million pixels)
data collection	Collect change video data in real time and save it automatically to reduce human error
Display method	Support data classification management
storage	Built-in 10.8-inch touch screen control, embedded supporting analysis software
Data interface	30G hard drive, 2G memory
power supply	Standard four-way USB interface, one way WIFI network interface
power	220VAC-50HZ

Introduction:
The fully automatic video melting point tester is an indispensable testing device in the food, pharmaceutical and chemical industries for testing the melting points of drugs, reagents, fragrances, dyes and other organic crystalline substances.
The MPT series melting point instrument adopts high-definition video shooting technology to directly and clearly display the image of the sample melting process while temperature-controlled heating, and automatically collects the corresponding images of the initial melting and final melting.
Comply with each pharmacopoeial test method.
