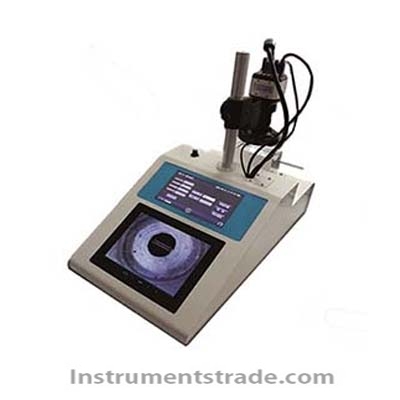

| Model | MPT-T1 |
| Detection method | Manual test |
| Temperature resolution | 0.1 ° C |
| Heating range | Linear temperature rise at room temperature -420 °C |
| Cooling function | -20 ° C -420 ° C (optional) constant temperature cooling, can test similar low-melting samples of oils and fats |
| Accuracy | ±0.2°C (room temperature -150°C) ±0.3°C (150°C-420°C) |
| Repeatability | ±0.15 ° C (temperature up rate is 0.2 ° C / Min) |
| Temperature correction | Configure standard samples to correct device temperature |
| Temperature control platform | The new sample stage design ensures uniform temperature at each contact point of the sample stage. |
| Heating rate | 0.1°C-30°C/min |
| Number of samples | Capillary method: 1 / batch, coverslip method: 1 / batch |
| Capillary size | Inner diameter 1mm, wall thickness 0.1mm-0.15mm |
| Slide size | 76mmx26mm |
| HD camera | 2 million to 5 million pixels (standard 2 million pixels) |
| Microscope head | Configuring HD data eyepiece microscope head |
| data collection | Collect change video data in real time and save it automatically to reduce human error |
| Display method | Support data classification management |
| storage | Built-in 10.8-inch touch screen control, embedded supporting analysis software |
| Data interface | 30G hard drive, 2G memory |
| power supply | Standard four-way USB interface, one way WIFI network interface |
| power | 220VAC-50HZ |
Please inquire
US$3,980.00 ~ US$5,980.00
