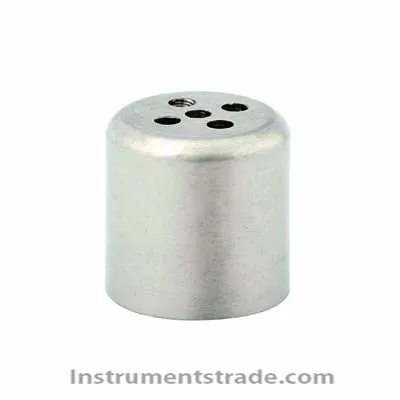

MP418 1/4 inch free field microphone Introduction: MP418 is a 1/4 inch free field microphone suitable for measurement in non reflective free field and semi free field environments. It uses pre polarization without the need for external polarization voltage and is suitable for ICCP powered MA411A/B preamplifiers (optional TEDS). MP418 uses post equalization method, with a frequency range of 20 Hz~16 kHz, and can measure sound pressure levels up to 137 dB. MP418 is suitable for occasions with strict cost requirements for individual units, and can also be used with sound exposure meters. The optional TEDS function supports data acquisition devices to directly read microphone information, including microphone model, serial number, sensitivity, etc. At present, Beijing's prestigious TEDS microphones support the IEEE 1451.4 standard, which defaults to v0.9 version to be compatible with more data acquisition devices. According to user requirements, v1.0 version can also be selected. For detailed information about TEDS, please refer to "Technical Summary 5 TEDS Sensor Electronic Data Sheet". Application scope: Low cost microphones; Acoustic measurements of environment, interior, exterior, anechoic chamber, and reverberation chamber; Can be used for sound exposure meters characteristic: 1.1/4 inch free field microphone 2. Sensitivity (@ 250 Hz): 10 mV/Pa (-40 dB re 1V/Pa) 3. Frequency response: 20 Hz~16 kHz (± 5 dB) 4. Dynamic range: 36 dBA~137 dB 5. Polarization voltage: 0V (pre polarized) 6. Pressure equalization method: rear equalization 7. Only applicable to MA418 preamplifier Technical parameters: Sound Field Type: Free Field Diameter: 1/4“ Level (IEC61672): Level 2 Open circuit sensitivity @ 250 Hz (mV/Pa) (± 2 dB): 10 (-40 dB re 1V/Pa) Polarization voltage: 0V (pre polarized) Frequency response (Hz) (± 2 dB): 20~16k Dynamic range (dBA~dB) 1:36~137 Microphone thermal noise (dBA): 36 Maximum sound pressure level (dB) (3% distortion) 1:137 Capacitor (pF): 6 Equivalent front cavity volume @ 250 Hz (mm3): 1 Pressure equalization method: front equalization Temperature range for use (° C): 0~40 Humidity range (% RH): 0~98 Temperature coefficient (250 Hz) (dB/° C):<± 0.6 dB (0~40 ° C) at 250 Hz and reference temperature of 23 ° C Pressure coefficient (250 Hz) (dB/kPa): -0.06 Humidity impact (dB):<0.5 Compliant with standards: non-standard size microphone Size (mm): Non removable protective cover: Ø 7 × 7 Connecting thread:
Introduction: MP418 is a 1/4 inch free field microphone suitable for measurement in non reflective free field and semi free field environments. It uses pre polarization without the need for external polarization voltage and is suitable for ICCP powered MA411A/B preamplifiers (optional TEDS). MP418 uses post equalization method, with a frequency range of 20 Hz~16 kHz, and can measure sound pressure levels up to 137 dB. MP418 is suitable for occasions with strict cost requirements for individual units, and can also be used with sound exposure meters. The optional TEDS function supports data acquisition devices to directly read microphone information, including microphone model, serial number, sensitivity, etc. At present, Beijing's prestigious TEDS microphones support the IEEE 1451.4 standard, which defaults to v0.9 version to be compatible with more data acquisition devices. According to user requirements, v1.0 version can also be selected. For detailed information about TEDS, please refer to "Technical Summary 5 TEDS Sensor Electronic Data Sheet". Application scope: Low cost microphones; Acoustic measurements of environment, interior, exterior, anechoic chamber, and reverberation chamber; Can be used for sound exposure meters
