Introduction:

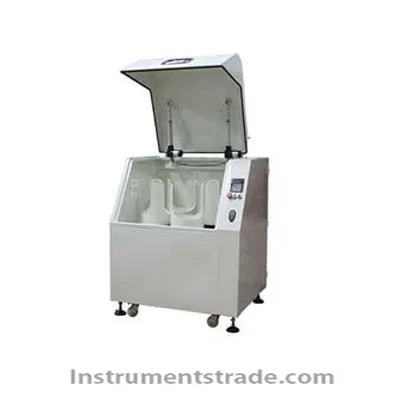

Miqi planetary ball mill is an indispensable device for mixing, fine grinding, sample preparation, nano material dispersion, new product development and high-volume production of high-tech materials. The product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research units, universities and enterprise laboratories to obtain microparticle research samples (four samples can be obtained in each experiment), with vacuum ball milling. The can is used to grind the sample under vacuum.
The planetary ball mill is equipped with four ball mill tanks on the same turntable. When the turntable rotates, the ball mill tank revolves around its own axis while rotating around the turntable axis for planetary motion. The grinding balls in the tank collide with each other in high-speed motion, grinding and mixing the samples. The product can grind and mix products with different particle sizes and materials in both dry and wet ways. The minimum particle size of the milled product can be up to 0.1 micron (ie 1.0×10mm-4). Working mode: Two or four ball mills work at the same time. Maximum loading capacity: Two-thirds of the volume of the ball mill tank. Feeding degree: soil material ≤ 10mm Other material ≤ 3mm Discharge grain size: minimum 0.1um (ie 1.0 ×10mm-4). Features:
1. Series ball mills are small in size, light in weight and low in noise.
2. It can run continuously in one direction, one-way timing operation, automatic forward and reverse continuous and timed operation.
3. Series ball mill can dry grinding, wet grinding, vacuum grinding, and protective atmosphere grinding.
4. The main belt of the series planetary ball mill has adjustable tightness, which is not easy to slip for a long time, which greatly prolongs the service life.
5. The series of planetary ball mills have a unique cabinet flip (or open door), which is easy to operate and has a safety switch on the cover, which is safe and reliable. The structure is compact, the shape is beautiful, the weight is greatly reduced, and the whole machine is completely integrated.
6. The series planetary ball mill adopts the complete rolling friction transmission between the metal wheel and the wear-resistant polymer material wheel. The noise and wear are minimized, and the gear breakage and damage that may occur in the gear type ball mill will not occur during operation and operation, which greatly prolongs the stability and service life of the operation. Technical Parameters:
Model: MITR-YXQM-40L
Production: 10L*4=40L
Structure: Planetary
Grinding method: dry / wet / high energy alloying grinding / vacuum grinding / low temperature grinding / vacuum grinding (optional)
Loading and unloading method: intermittent
Transmission mode: gear transmission
Speed control mode: frequency control
Control system: variable frequency control system, touch screen control system
Speed ratio (r/min): 2:1
Revolution speed (r/min): 5-220
Rotation speed (r/min): 10-440
Station (P): 4 stations
Rated voltage (V): 380
Power Rating (W): 550
Frequency (Hz): 50
Continuous running time (h): 100
Running time (h): 1-9999
Multi-speed program setting: 7 segments
Feed particle size (mm): "15mm, hard material "3mm
Discharge size (μm): "0.1μm, ie 100nm
Ball mill material: agate, zirconia, alumina, hard alloy, stainless steel, high chromium steel, nylon, pp can, PTFE, polyurethane, custom
Ball size (mm): 0.5, 1, 2, 3, 5, 7, 10, 15, 20 (matching plan according to customer's experimental requirements)
Grinding ball ratio: Miqi 200 sets of different input and output particle size ratio scheme (consult customer service)
Ball to material ratio: (2~10): 1
Net weight (kg): 110
Dimensions (mm): subject to the actual product
Packing: Export packaging, brand packaging
