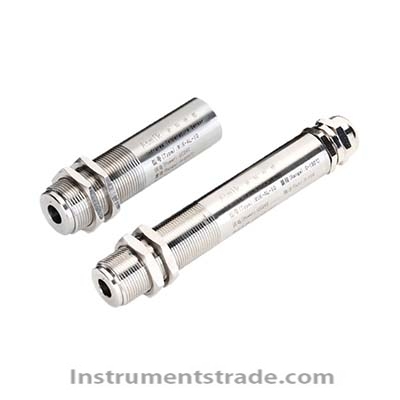

MIK-AL-10 industrial online infrared thermometer Introduction: The MIK-AL-10 industrial online infrared thermometer can calculate the surface temperature of an object by measuring the infrared radiation intensity emitted by the target without touching it. Non contact temperature measurement is the biggest advantage of infrared thermometers, as users can easily measure targets that are difficult to approach or move. At the same time, there are various options available (such as blowers, mounting brackets, adjustable mounting brackets, blowing protective covers, etc.) to meet the requirements of various working conditions. characteristic: 1. Measurable objects that are difficult to approach or move 2. 50ms and 300ms high-speed temperature measurement 3. Non contact, longer lifespan, and durability 4. Covering a wider range of temperature measurement 5. Micro amplifier, voltage, current, frequency signal input Technical parameters: Product Name: Online Infrared Temperature Sensor Temperature range: 0~150 ℃, 0~300 ℃, 0~500 ℃ (higher temperatures can be customized) Spectral range: 8-14 μ M (other ranges can be customized) Optical resolution: 20:1 (other resolutions can be customized) Response time: 300MS (other response times can be customized) Emissivity: 0.95 fixed (factory adjustable) Temperature measurement accuracy: ± 1% or ± 2 ℃ of the measured value, whichever is greater Working power supply: 24VDC Output signal: 4-20mA (default); Other output methods can be customized Protection level: NEMA-4(IP65) Environmental temperature: 0~60 ℃ Relative humidity: 10~95% (non condensing) Shell material: 304 stainless steel Dimensions: 68MM × 18MM or 106MM × 18MM (length × diameter) Cable length: 2M (standard); 3M; 15M and special specifications can be customized
Introduction: The MIK-AL-10 industrial online infrared thermometer can calculate the surface temperature of an object by measuring the infrared radiation intensity emitted by the target without touching it. Non contact temperature measurement is the biggest advantage of infrared thermometers, as users can easily measure targets that are difficult to approach or move. At the same time, there are various options available (such as blowers, mounting brackets, adjustable mounting brackets, blowing protective covers, etc.) to meet the requirements of various working conditions.
