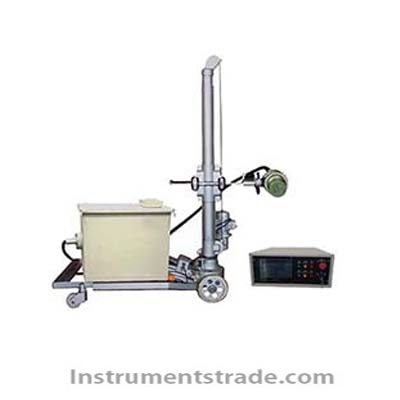

Introduction: The mobile industrial X-ray flaw detector is mainly used in fixed protection places. The equipment is mainly composed of X-ray tube, X-ray generator, cooling device, lifting frame car, high-voltage cable, etc., and the work is reliable. Features: 1. X-ray tube: Imported industrial NDT (non-destructive testing) X-ray tube, can be widely used in industrial testing, luggage, vehicle security, X-ray irradiation, thickness measurement of rolled steel and many other fields. 2. Controller: The desktop structure greatly improves the safety and reliability of the system through the PLC as the central controller. It is more convenient and simple to use with the 7" touch screen as the man-machine operating platform. 3. High voltage generator The high-voltage generator adopts a side-out high-voltage cable socket, which can be matched with various domestic and imported X-ray tubes. 4. Refrigeration system The industrial freezer (chiller) can precisely control the temperature required for modern industrial mechanized production, which greatly improves production efficiency and product quality. 5. Driving The mobile car can withstand less than 150kg X-ray generator for a long time, and can be used with domestic or imported portable, mobile and X-ray flaw detectors. Technical Parameters: Model: MIG-160Y X-ray tube and focus size: Choose according to the purpose of the device Tube voltage (KV): 20-160 Maximum penetration (mm): 28 Film sensitivity (%): better than 1.5 Control System: Universal PLC touch screen control High voltage generator (-) cathode: 160C High voltage cable: Select according to the purpose of the device Cooling device: air cooling / water cooling Rack: General
Introduction: The mobile industrial X-ray flaw detector is mainly used in fixed protection places. The equipment is mainly composed of X-ray tube, X-ray generator, cooling device, lifting frame car, high-voltage cable, etc., and the work is reliable.
