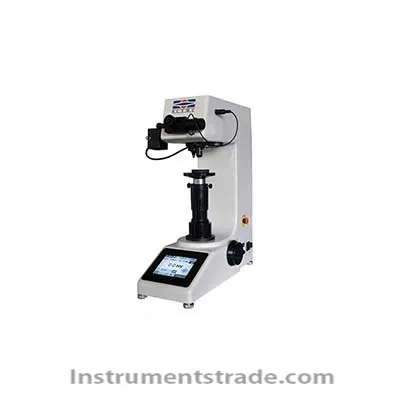

MHV-50Z Digital Vickers Hardness Tester

Product ID:WQyd062

Price: Please inquire PDF Format
Supply Ability:70 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberMHV-50Z
    Brand NameSHANGHAISHANGCAI
    Payment TermsT/T, paypal
    MHV-50Z Digital Vickers Hardness Tester
    Introduction
    MHV-50Z Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. It adopts the high resolution color touch screen which is visual and clear, easy to operate, display backlight adjustable with energy-saving mode. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved in real time with automatic calculation of maximum, minimum and average value, the data can be arbitrary deleted and printed out, and with RS232 interface for connecting to the computer. It can be equipped with LCD video measuring device and CCD image automatic measuring system.
    Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
    Technical Parameters
    Model MHV-50Z
    Test Force kgf 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
    N 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
    Test Range 1HV~2967HV
    Loading Method Automatic (Loading/Dwell/Unloading)
    Shifting between Objective and Indenter Automatic Shifting
    Data Output Built-in Printer,RS232 Interface
    Hardness Reading Color Touch Screen, Data can be saved
    Conversion Scale HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
    Eyepiece 10× Digital Measuring Eyepiece
    Objective 10×,20×
    Total Magnification 100×,200×
    Effective Field of View 10×:800μm20×:400μm
    Min. Measuring Unit 10×:0.25μm20×:0.13μm
    Dwell Time 0~60s
    Light Source Halogen Lamp
    Max. Height of Specimen 185mm
    Throat 130mm
    Power Supply AC220V,50Hz
    Execute Standard ISO 6507,ASTM E92JIS Z2244,GB/T 4340.2
    Dimension 530×280×630mm
    Packing Dimension: 620×450×760mm
    Weight Net Weight: 35kg,Gross Weight: 47kg




  • Introduction
    MHV-50Z Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. It adopts the high resolution color touch screen which is visual and clear, easy to operate, display backlight adjustable with energy-saving mode. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved in real time with automatic calculation of maximum, minimum and average value, the data can be arbitrary deleted and printed out, and with RS232 interface for connecting to the computer. It can be equipped with LCD video measuring device and CCD image automatic measuring system.
    Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
